Custom Thermoelectric

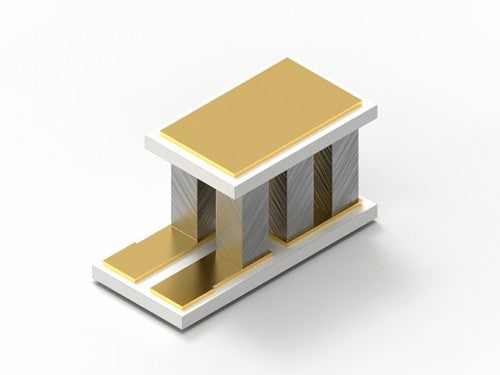

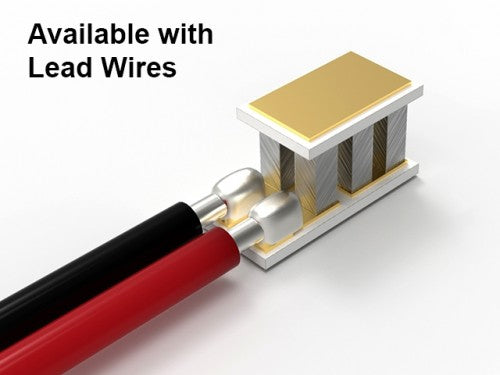

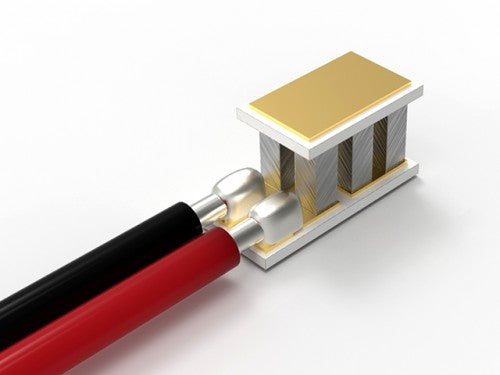

00301-9X30-10RU2 Thermoelectric/Peltier Mini Module
00301-9X30-10RU2 Thermoelectric/Peltier Mini Module
Regular price
$29.95 USD
Regular price
Sale price
$29.95 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 0.20 | 1.0 | 0.35 | 70 | 200 | 0.31 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 1.20 [0.047] | 1.90 [0.075] | 1.20 [0.047] | 2.60 [0.102] | 1.4 [0.055] |
- 3 couples
- Miniature ThermoElectric Cooler (TEC) for precise spot cooling or temperature control.
- Rated to 200°C for high temperature environments and applications.
- Metallized (Au on Ni on Cu) ceramic (Al2O3) on both faces.
- Gold (Au) plated metallized faces allow for solder mounting.
- Also called: Mini TEC, mini peltier, mini thermoelectric, micro TEC, micro peltier, micro thermoelectric, miniature peltier, miniature thermoelectric, spot cooler, small peltier, tiny thermoelectric, laser cooler, CCD cooler etc.
