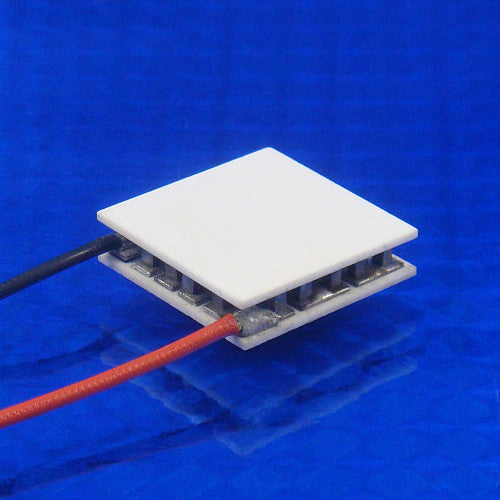

01711-9L31-04CJ Thermoelectric/Peltier Module
01711-9L31-04CJ Thermoelectric/Peltier Module
Regular price
$28.75 USD
Regular price
Sale price
$28.75 USD
Unit price
per
Couldn't load pickup availability
| Thermal & Electrical Specifications | |||||
|---|---|---|---|---|---|
|
Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
dTmax (°C) |
Tmax (°C) |
ACR (ohms) |
| 3.90 | 3.0 | 2.10 | 67 | 125 | 0.64 |
| Dimensions mm [inches] | |||||
|---|---|---|---|---|---|
| A | B | C | D | H | |
| 12.0 [0.472] | 12.0 [0.472] | 12.0 [0.472] | 12.0 [0.472] | 3.6 [0.142] | |
Downloads
Spec SheetNOTE: Many of the 2D and 3D CAD models are "Defeatured". This means the 2D and 3D CAD models provided may withhold details and dimensions of the internal structures in order to protect the proprietary features of the product. By downloading any of the above CAD files, you accept the conditions of our CAD Model Policy.
Product Details
- 17 couples
- Small ThermoElectric Cooler (TEC) for precise spot cooling or temperature control.
- Rated to 125°C for moderate temperature environments and applications.
- MPlain lapped ceramic (Al2O3) on both faces.
- Also called: Mini TEC, mini peltier, mini thermoelectric, micro TEC, micro peltier, micro thermoelectric, miniature peltier, miniature thermoelectric, spot cooler, small peltier, tiny thermoelectric, laser cooler, CCD cooler etc.
