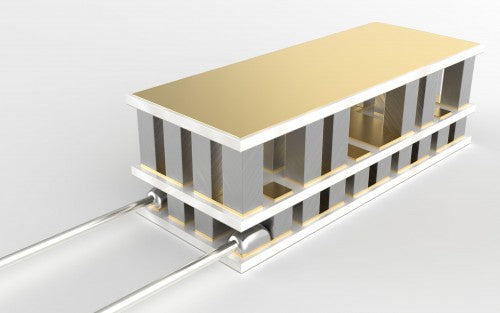

02302-9A30-17RU4B 2 Stage Mini Thermoelectric Module
02302-9A30-17RU4B 2 Stage Mini Thermoelectric Module
Regular price
$102.20 USD
Regular price
Sale price
$102.20 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 0.9 | 1.7 | 2.3 | 97 | 200 | 1.10 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 3.9 [0.154] | 10.0 [0.394] | 3.9 [0.154] | 10.0 [0.394] | 3.20 [0.126] |
- RoHS and REACH compliant
- Made using select high performance BiTe semiconductor materials for exceptional performance
- 5 couple top stage. 18 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- Multistage to achieve greater delta T's
- Rated to 200°C for high temperature environments and applications
- Ceramic (Al2O3 100%) faces metallized with a final gold (Au) plating 0.25um thick.
- Metallization with gold suitable for fluxless solder mounting on both top and bottom faces.
