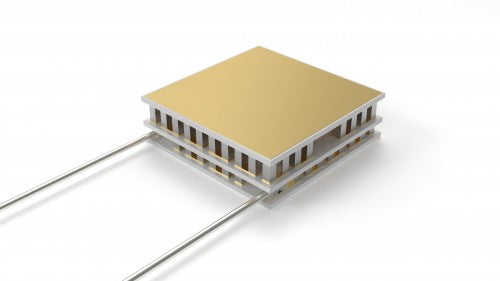

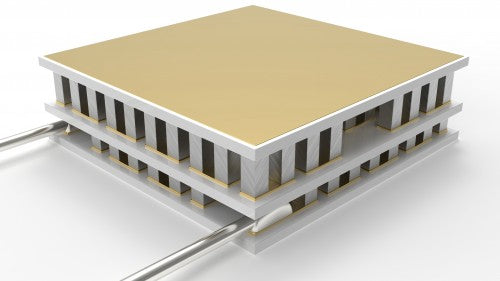

04602-9B30-11RA 2 Stage Mini Thermoelectric Module
04602-9B30-11RA 2 Stage Mini Thermoelectric Module
Regular price
$102.20 USD
Regular price
Sale price
$102.20 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 1.5 | 1.1 | 3.8 | 90 | 200 | 3.10 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 8.0 [0.315] | 8.0 [0.315] | 8.0 [0.315] | 8.0 [0.315] | 2.40 [0.095] |
- RoHS and REACH compliant
- Made using select high performance BiTe semiconductor materials for exceptional performance
- 15 couple top stage. 31 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- Multistage to achieve greater delta T's
- Rated to 200°C for high temperature environments and applications
- Ceramic (Al2O3 100%) faces metallized with a final gold (Au) plating 0.25um thick.
- Metallization with gold suitable for fluxless solder mounting on both top and bottom faces.
