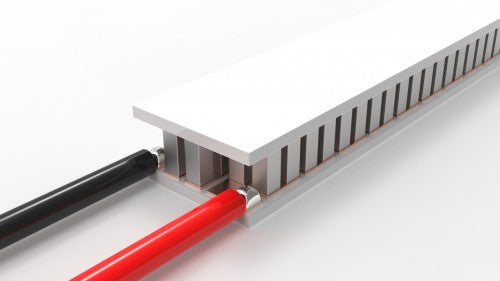

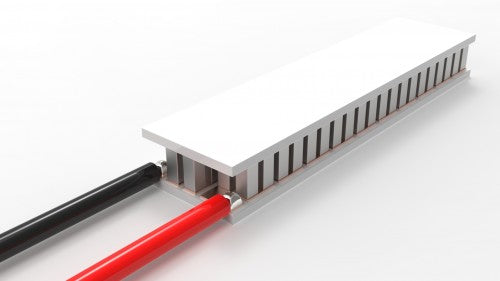

05111-9K31-02CU6J1-S Rectangular Thermoelectric/Peltier Module RTV Sealed
05111-9K31-02CU6J1-S Rectangular Thermoelectric/Peltier Module RTV Sealed
Regular price
$34.50 USD
Regular price
Sale price
$34.50 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 7.20 | 2.0 | 6.30 | 69 | 200 | 2.52 |
Dimensions mm[inches]
3D Models under the Drawings tab
| A | B | C | D | H |
|---|---|---|---|---|
| 5.90[0.232] | 24.0 [0.945] | 5.90 [0.232] | 24.0 [0.945] | 3.0 [0.118] |
- 51 couples
- Rectangular ThermoElectric cooler (TEC)
- Rectangular shape for unlimited uses in cooling and heating
- Rated to 200°C for high temperature environments and applications
- Lapped ceramic (Al2O3) faces
-
RTV silicone sealed edges to protect from moisture and debris
