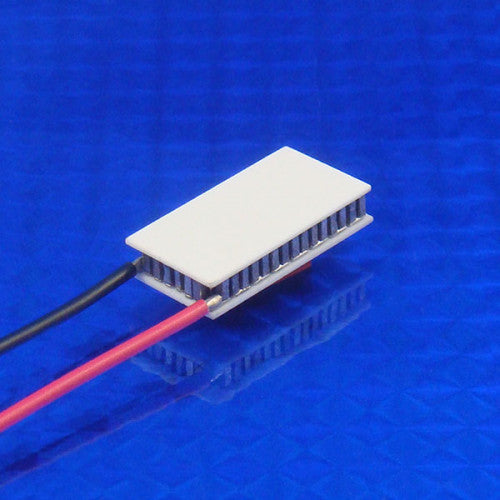

06311-5Q31-02CDK Thermoelectric/Peltier Module
06311-5Q31-02CDK Thermoelectric/Peltier Module
Regular price
$24.00 USD
Regular price
Sale price
$24.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 9.0 | 2.0 | 7.6 | 67 | 125 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 12.3 [0.484] | 25.0 [0.984] | 12.3 [0.484] | 25.0 [0.984] | 3.5 [0.138] |
- 63 couples
- ThermoElectric cooler (TEC)
- Rectangular size for unlimited uses in cooling and heating
- Rated to 125°C for moderate temperature environments and applications
- Lapped ceramic (Al2O3) faces
