Custom Thermoelectric

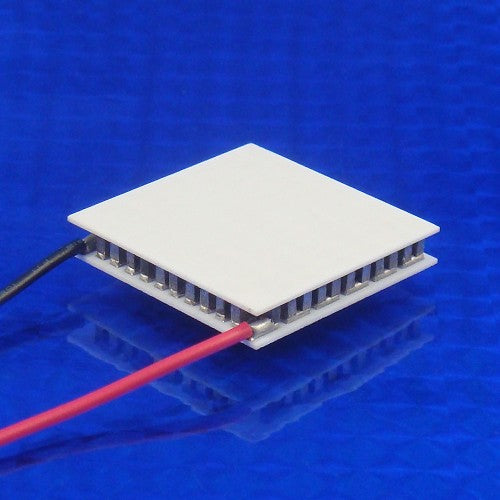

07111-5R30-24CF3 Thermoelectric/Peltier Module

07111-5R30-24CF3 Thermoelectric/Peltier Module

$22.95 USD
$22.95 USD
Sale Sold out

Thermal & Electrical Specifications

Qcmax
(watts)		 Imax
(amps)		 Vmax
(volts)		 DTmax
(°C)		 Tmax
(°C)		 ACR
(ohms)
11.4 2.4 8.6 68 125 XXX


Dimensions mm[inches]

A B C D H
18.0 [0.709] 18.0 [0.709] 18.0 [0.709] 18.0 [0.709] 3.4 [0.134]

image of TEC dimensions

  • 71 couples
  • ThermoElectric cooler (TEC)
  • Small size for precise spot cooling
  • Rated to 125°C for high temperature environments and applications
  • Lapped ceramic (Al2O3) faces
