Custom Thermoelectric

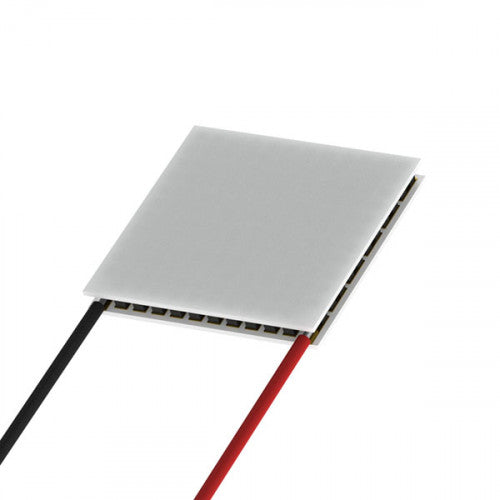

07111-9L31-04BL TiTan Series Thermoelectric/Peltier Module

07111-9L31-04BL TiTan Series Thermoelectric/Peltier Module

$112.50 USD
$112.50 USD
Sale Sold out

Thermal & Electrical Specifications

Qcmax
(watts)		 Imax
(amps)		 Vmax
(volts)		 DTmax
(°C)		 Tmax
(°C)		 ACR
(ohms)
18.57 4.0 9.1 68 200 XXX


Dimensions mm[inches]

A B C D H
29.72 [1.170] 29.72 [1.170] 29.72 [1.170] 29.72 [1.170] 4.57 [0.180]

image of TEC dimensions

  • 71 couples
  • TiTan Series ThermoElectric cooler (TEC)
  • Rated to 200°C for high temperature environments and applications.
  • Lapped ceramic (Al2O3) faces.
