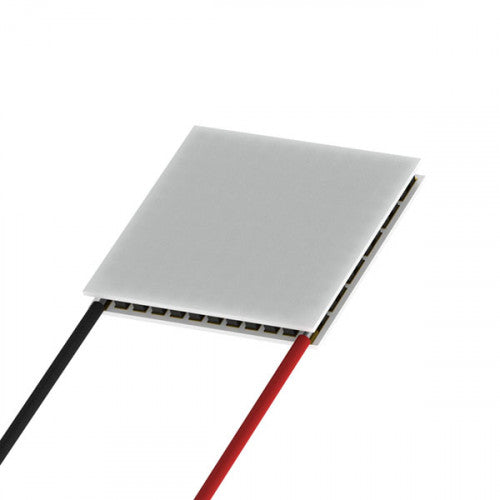

07111-9L31-09BL TiTan Series Thermoelectric/Peltier Module
07111-9L31-09BL TiTan Series Thermoelectric/Peltier Module
Regular price
$102.50 USD
Regular price
Sale price
$102.50 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 42.00 | 9.0 | 9.1 | 68 | 200 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 29.72 [1.170] | 29.72 [1.170] | 29.72 [1.170] | 29.72 [1.170] | 3.56 [0.140] |
- 71 couples
- TiTan Series ThermoElectric cooler (TEC)
- Rated to 200°C for high temperature environments and applications.
- Lapped ceramic (Al2O3) faces.
