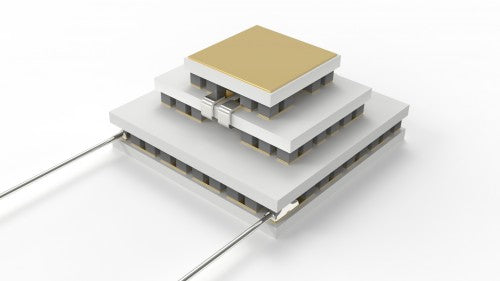

07603-9U30-10RU4A 3 Stage Mini Thermoelectric Module
07603-9U30-10RU4A 3 Stage Mini Thermoelectric Module
Regular price
$122.80 USD
Regular price
Sale price
$122.80 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 1.1 | 1.0 | 5.8 | 110 | 200 | 4.80 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 4.0 [0.157] | 4.0 [0.157] | 8.0 [0.315] | 8.0 [0.315] | 3.80 [0.150] |
- RoHS and REACH compliant
- Made using select high performance BiTe semiconductor materials for exceptional performance
- 8 couple top stage. 21 couple mid stage. 47 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- Multistage to achieve greater delta T's
- Rated to 200°C for high temperature environments and applications
- Ceramic (Al2O3 100%) faces metallized with a final gold (Au) plating 0.25um thick.
- Metallization with gold (Au) plating suitable for fluxless solder mounting on both top and bottom faces.
