Custom Thermoelectric
09011-5L31-09CF4Z Peltier Module Cutera Coolglide Replacement Part
09011-5L31-09CF4Z Peltier Module Cutera Coolglide Replacement Part
Regular price
$175.00 USD
Regular price
Sale price
$175.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 54.6 | 9.0 | 11.0 | 67 | 125 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 19.0[0.748] | 58.0 [2.28] | 19.0 [0.748] | 62.0 [2.44] | 3.7 [0.146] |

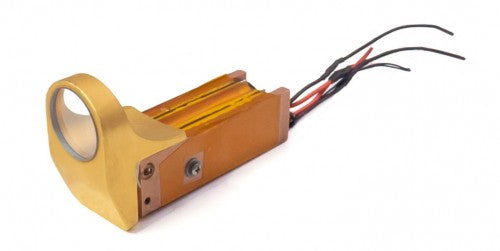

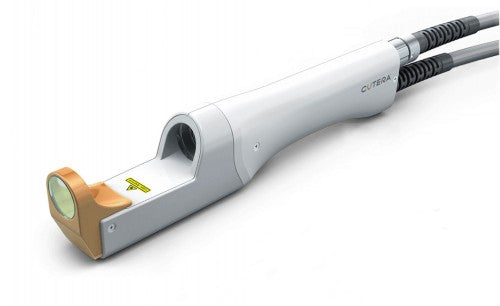

- This is a replacement TEC for the Cutera Coolglide Handpiece
- 90 couples

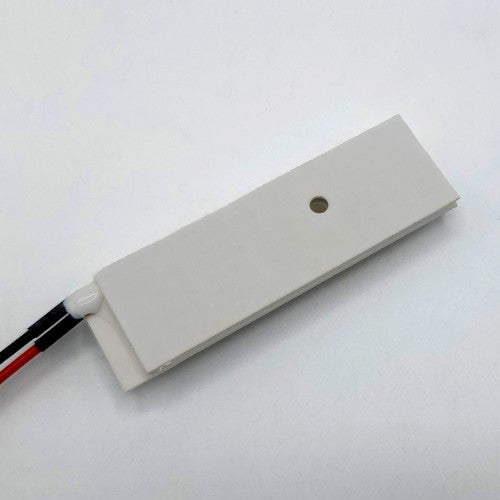

- Rectangular ThermoElectric cooler (TEC)
- With a 3.2mm dia. hole
- Rated to 125°C for high temperature environments and applications
- Lapped ceramic (Al2O3) faces
- RTV silicone sealed
- Ready to install
