Custom Thermoelectric

10212-5L31-04CGL 2 Stage Thermoelectric/Peltier Module

Name: 10212-5L31-04CGL 2 Stage Thermoelectric/Peltier Module
Brand: Custom Thermoelectric
SKU: 10212-5L31-04CGL
Price: 74.75 USD
Availability: InStock

$74.75 USD

Sale Sold out

Sealing Not Sealed RTV Sealed

Product variants

Quantity

Thermal & Electrical Specifications

Qc_max (watts)	I_max (amps)	V_max (volts)	DT_max (°C)	T_max (°C)	ACR (ohms)
13.6	4.6	8.2	92	125	1.70

Dimensions mm[inches]

A	B	C	D	H
20.0 [0.787]	20.0 [0.787]	30.0 [1.181]	30.0 [1.181]	6.9 [0.272]

image of multistage TEC dimensions

31 couple top stage. 71 couple bottom stage

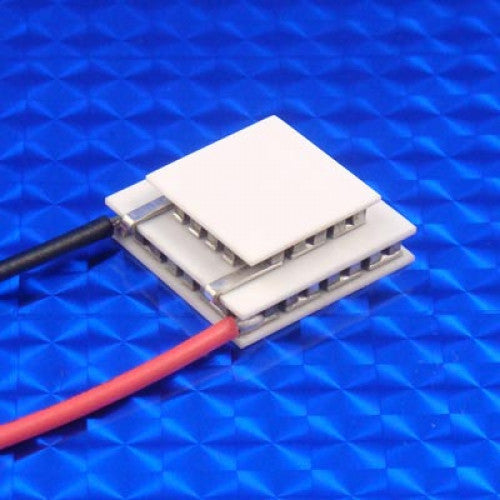

Multistage ThermoElectric Cooler (TEC)
Multistage to achieve greater delta T's
Rated to 125°C for moderate temperature environments and applications
Lapped ceramic (Al₂O₃) faces

View full details
