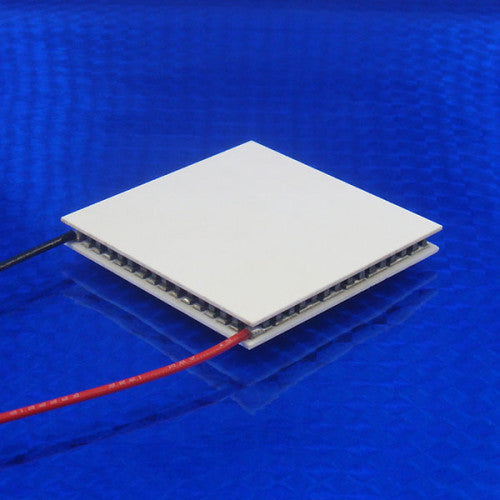

12711-9L31-04CW Thermoelectric/Peltier Module
12711-9L31-04CW Thermoelectric/Peltier Module
Regular price
$45.00 USD
Regular price
Sale price
$45.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 33.4 | 4.0 | 15.4 | 68 | 200 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 50.0 [1.969] | 50.0 [1.969] | 50.0 [1.969] | 50.0 [1.969] | 5.2 [0.205] |
- 127 couples
- ThermoElectric cooler (TEC)
- Standard size for unlimited uses in cooling and heating
- Rated to 200°C for high temperature environments and applications
- Lapped ceramic (Al2O3) faces
