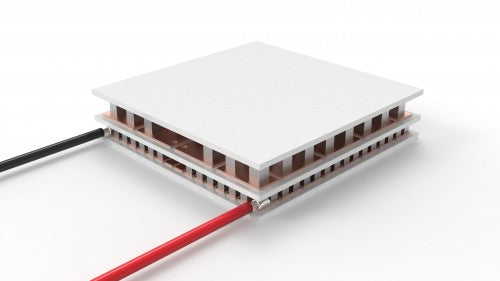

1581T-9L31-05CQQ-S 2 Stage Thermal Cycling Thermoelectric Module [RTV sealed]
1581T-9L31-05CQQ-S 2 Stage Thermal Cycling Thermoelectric Module [RTV sealed]
Regular price
$76.00 USD
Regular price
Sale price
$76.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 19.18 | 5.0 | 15.9 | 100 | 200 | 2.65 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 9.0 [0.354] |
- Designed to withstand Thermal Cycling with our proprietary stress absorbing construction
- Made using select high performance BiTe semiconductor materials for exceptional performance
- 31 couple top stage. 127 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- Multistage to achieve greater delta T's
- Rated to 200°C for high temperature environments and applications
- Lapped ceramic (Al2O3) faces
-
RTV sealed
