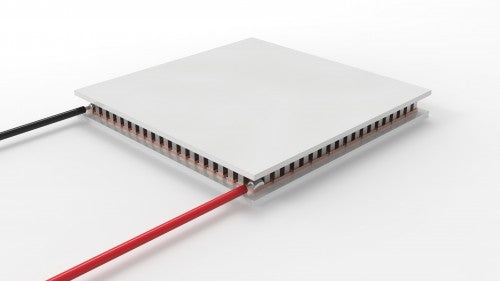

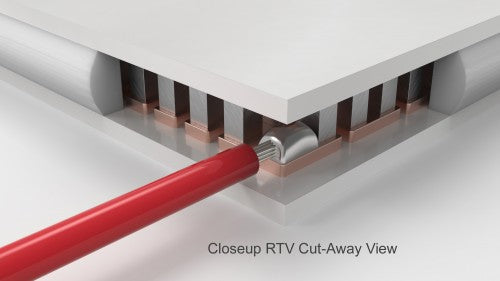

19911-9Q31-02CQ Thermoelectric/Peltier Module
19911-9Q31-02CQ Thermoelectric/Peltier Module
Regular price
$39.00 USD
Regular price
Sale price
$39.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 28.1 | 2.0 | 24.0 | 67 | 200 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 4.4 [0.173] |
- 199 couples
- ThermoElectric cooler (TEC)
- For unlimited uses in cooling and heating
- Also used for power generation
- Rated to 200°C for high temperature environments and applications
- Lapped ceramic (Al2O3) faces
