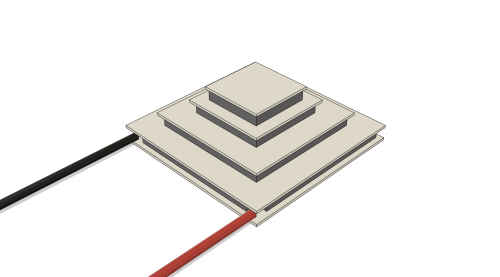

24614-5L30-34CQF 4 Stage Thermoelectric/Peltier Module
24614-5L30-34CQF 4 Stage Thermoelectric/Peltier Module
Regular price
$215.90 USD
Regular price
Sale price
$215.90 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 9.1 | 3.4 | 14.5 | 115 | 125 | 4.0 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 15.0 [0.591] | 15.0 [0.591] | 40.0 [1.575] | 40.0 [1.575] | 13.7 [0.539] |

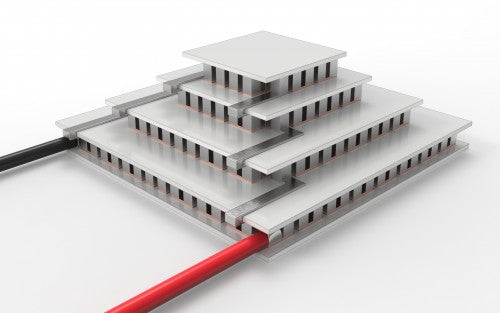

- 17 couple top stage, 31 couple upper mid stage, 71 couple lower mid stage, and 127 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- 4 stages to achieve 115C delta T
- Rated to 125°C for moderate temperature environments and applications
- Lapped ceramic (Al2O3) faces
