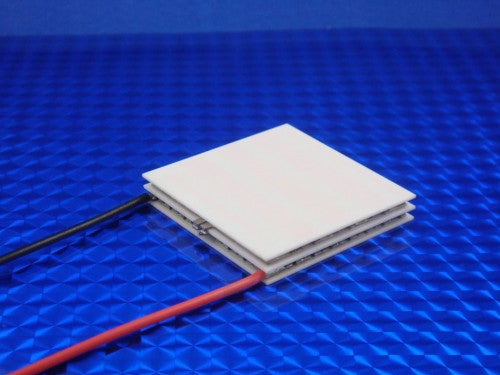

25412-5L31-07CQQ 2 Stage Thermoelectric/Peltier Module
25412-5L31-07CQQ 2 Stage Thermoelectric/Peltier Module
Regular price
$76.00 USD
Regular price
Sale price
$76.00 USD
Unit price
per
Couldn't load pickup availability
hermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 48.0 | 7.0 | 15.2 | 90 | 125 | XXX |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 40.0 [1.575] | 6.6 [0.260] |
- 127 couple top stage. 127 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- Multistage to achieve greater delta T's
- Rated to 125°C for moderate temperature environments and applications
- Lapped ceramic (Al2O3) faces
