Custom Thermoelectric

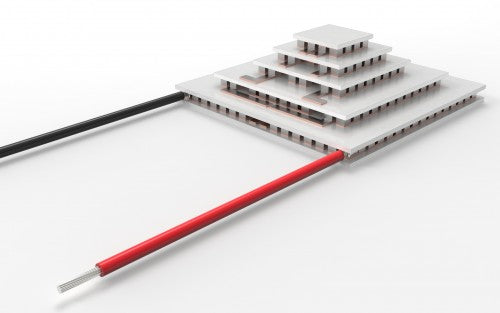

25415-5L30-65CQB 5 Stage Thermoelectric/Peltier Module
25415-5L30-65CQB 5 Stage Thermoelectric/Peltier Module
Regular price
$295.00 USD
Regular price
Sale price
$295.00 USD
Unit price
per
Couldn't load pickup availability
Thermal & Electrical Specifications
| Qcmax (watts) |
Imax (amps) |
Vmax (volts) |
DTmax (°C) |
Tmax (°C) |
ACR (ohms) |
|---|---|---|---|---|---|
| 9.75 | 6.5 | 13.8 | 128 | 125 | 2.2 |
Dimensions mm[inches]
| A | B | C | D | H |
|---|---|---|---|---|
| 10.0 [0.394] | 10.0 [0.394] | 40.0 [1.575] | 40.0 [1.575] | 12.5 [0.492] |
- 8 couple top stage, 17 couple upper mid stage, 31 couple mid stage, 71 couple lower mid stage, and 127 couple bottom stage
- Multistage ThermoElectric Cooler (TEC)
- 5 stages to achieve 128C delta T
- Rated to 125°C for moderate temperature environments and applications
- Lapped ceramic (Al2O3) faces
