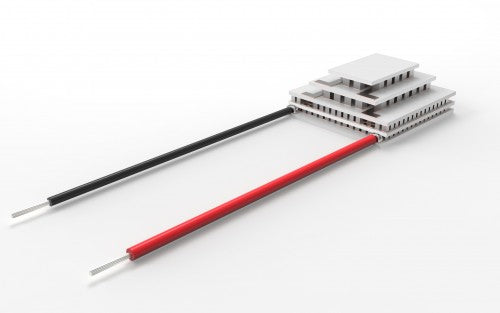

28414-5R30-47CGE 4 Stage Thermoelectric/Peltier Module

Name: 28414-5R30-47CGE 4 Stage Thermoelectric/Peltier Module
Brand: Custom Thermoelectric
SKU: 28414-5R30-47CGE
Price: 297.5 USD
Availability: InStock

$297.50 USD

Sale Sold out

Product variants

Quantity

Thermal & Electrical Specifications

Qc_max (watts)	I_max (amps)	V_max (volts)	DT_max (°C)	T_max (°C)	ACR (ohms)
6.5	4.7	14.6	125	125	3.0

Dimensions mm[inches]

A	B	C	D	H
8.5 [0.335]	13.0 [0.512]	19.5 [0.768]	20.8 [0.819]	7.8 [0.307]

image of multistage TEC dimensions

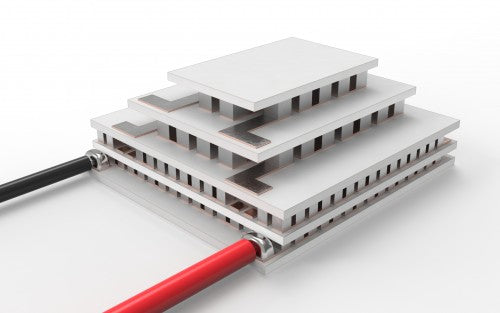

11 couple top stage, 22 couple upper mid stage, 124 couple lower mid stage, and 127 couple bottom stage
Multistage ThermoElectric Cooler (TEC)
4 stages to achieve 125C delta T
Rated to 125°C for moderate temperature environments and applications
Lapped ceramic (Al₂O₃) faces
