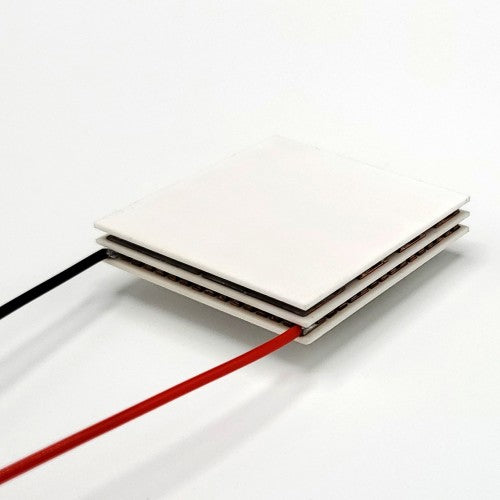

39812-5L31-10CQQ 2 Stage Thermoelectric/Peltier Module

Name: 39812-5L31-10CQQ 2 Stage Thermoelectric/Peltier Module
Brand: Custom Thermoelectric
SKU: 39812-5L31-10CQQ
Price: 117.2 USD
Availability: InStock

$117.20 USD

Sale Sold out

Product variants

Quantity

Thermal & Electrical Specifications

Qc_max (watts)	I_max (amps)	V_max (volts)	DT_max (°C)	T_max (°C)	ACR (ohms)
98.5	10.2	24.4	93	125	2.30

Dimensions mm[inches]

A	B	C	D	H
40.0 [1.575]	40.0 [1.575]	40.0 [1.575]	40.0 [1.575]	6.3 [0.248]

image of multistage TEC dimensions

199 couple top stage. 199 couple bottom stage
Multistage ThermoElectric Cooler (TEC)
Multistage to achieve greater delta T's
Rated to 125°C for moderate temperature environments and applications
Lapped ceramic (Al₂O₃) faces
