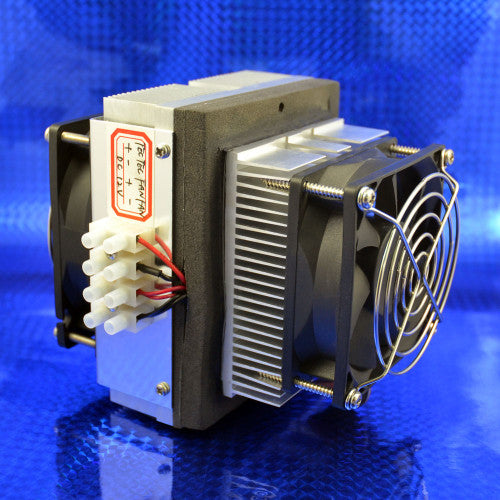

ATA-035-12 Air to Air Cooling/Heating Unit 35 Watts

Air to Air Cooling/Heating Unit

3D Models under the Drawings tab

• Part Number: ATA-035-12
• 35 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 12 volt, 5.6 amp
• High performance extruded aluminum heat sinks
• Overall dimensions: 120 x 102 x 145mm (4.72 x 4.02 x 5.71")
• Weight: 1040 grams (2.293 lbs)

Complete assembly for cooling or heating small enclosures, mini fridges, and other light duty temperature regulation applications.

• Fully assembled ready to bolt in place and connect to power.
• Simply cut hole in enclosure and mount in minutes.
• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Also known as; peltier air conditioner, thermoelectric air conditioner, solid state air conditioner.
