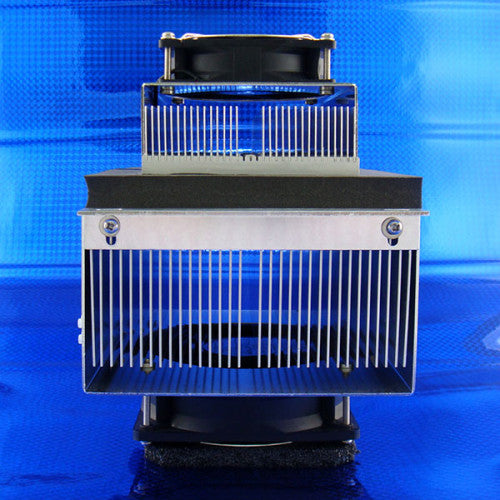

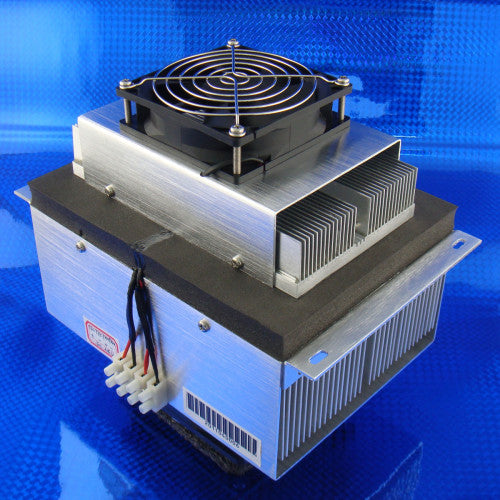

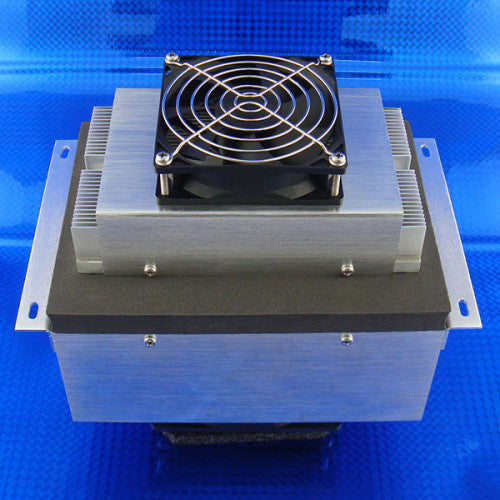

ATA-080-24 Air to Air Cooling/Heating Unit 80 Watts

Air to Air Cooling/Heating Unit

• Part Number: ATA-080-24
• 80 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 24 volt, 6.5 amp
• High performance extruded aluminum heat sinks
• Overall dimensions: 203 x 155 x 215mm (7.99 x 6.10 x 8.46")
• Weight: 4000 grams (8.80 lbs)

Complete assembly for cooling or heating small enclosures, mini fridges, and other light duty temperature regulation applications.

• Fully assembled ready to bolt in place and connect to power.
• Simply cut hole in enclosure and mount in minutes.
• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Also known as; peltier air conditioner, thermoelectric air conditioner, solid state air conditioner.
