ATL-050-12 Air to Liquid Cooling/Heating Unit 50 Watts

Air to Liquid Cooling/Heating Unit

• Part Number: ATL-050-12
• 50 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 12 volt, 8.7 amp

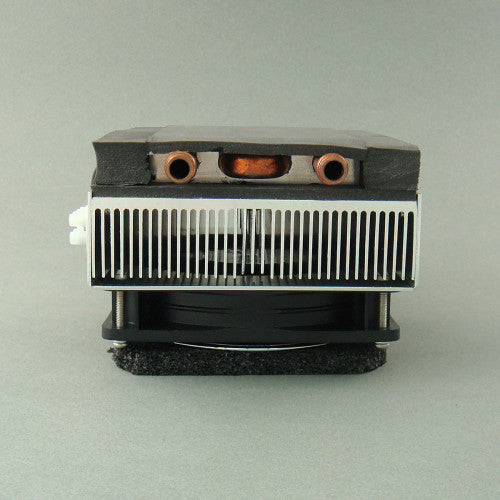

• Inlet and outlet designed for 9.5mm (0.375") ID tubing
• High performance bonded fin aluminum heat sink
• Overall dimensions: 161 x 123 x 86mm (6.32 x 4.82 x 3.38")
• Weight: 1470 grams (3.25 lbs)

Complete assembly Liquid cooling exchanger to be used a chiller, gas dehumidifier, fluid cooling, or recirculating chiller.

• Fully assembled ready to connect to power.

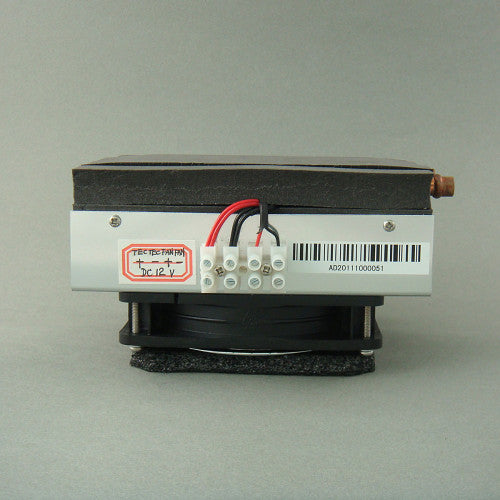

• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Can be mounted in any orientation.
• Foam insulation to minimize backward heat transfer and reduce noise and vibration.
• Also known as; peltier liquid chiller, thermoelectric liquid chiller, solid state liquid chiller.
