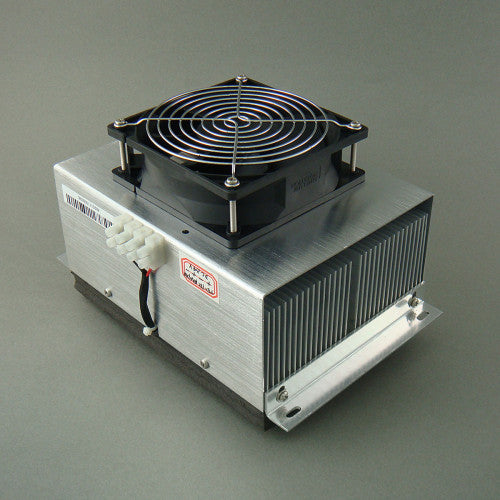

ATL-080-24 Air to Liquid Cooling/Heating Unit 72 Watts

Air to Liquid Cooling/Heating Unit

• Part Number: ATL-080-24
• 72 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 24 volt, 6.2 amp

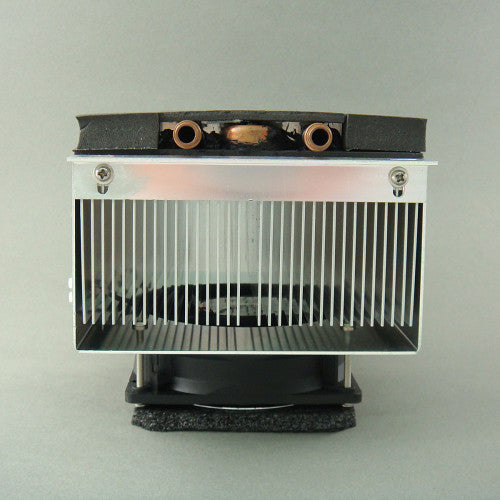

• Inlet and outlet designed for 9.5mm (0.375") ID tubing
• High performance bonded fin aluminum heat sink
• Overall dimensions: 203 x 153 x 150mm (7.99 x 6.02 x 5.91")
• Weight: 3580 grams (7.90 lbs)

Complete assembly Liquid cooling exchanger to be used a chiller, gas dehumidifier, fluid cooling, or recirculating chiller.

• Fully assembled ready to connect to power.

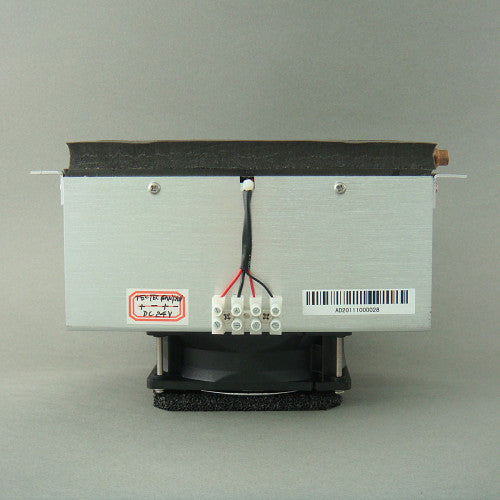

• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Can be mounted in any orientation.
• Foam insulation to minimize backward heat transfer and reduce noise and vibration.
• Also known as; peltier liquid chiller, thermoelectric liquid chiller, solid state liquid chiller.
