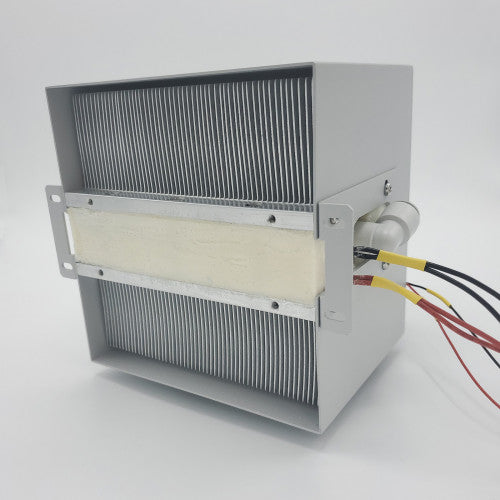

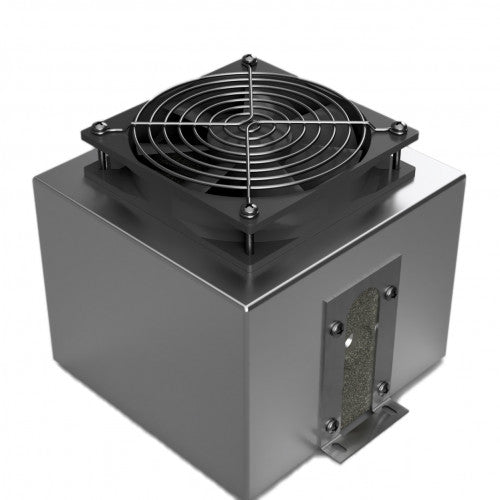

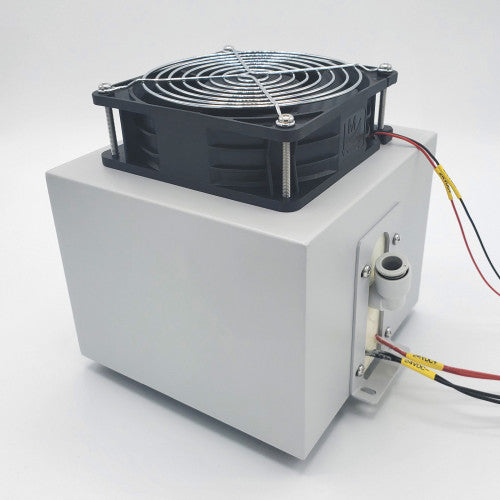

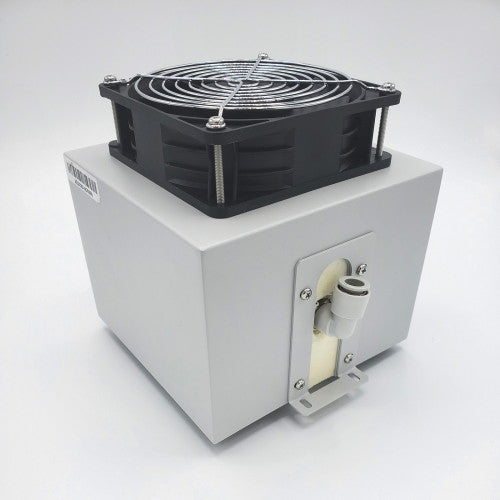

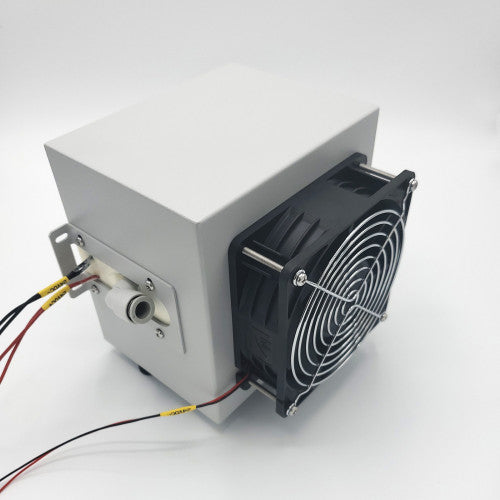

ATL-150-24 Air to Liquid Cooling/Heating Unit 150 Watts

Air to Liquid Cooling/Heating Unit

• Part Number: ATL-150-24
• 150 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 24 volt, 8.2 amp
• Inlet and outlet 1/8-27 NPT
• High performance skived fin aluminum heat sink
• Overall dimensions: 160 x 155 x 148mm (6.3 x 6.1 x 5.83")
• Weight: 3.1 Kg grams (6.83 lbs)


Complete assembly Liquid cooling exchanger to be used a chiller, gas dehumidifier, fluid cooling, or recirculating chiller.

• Fully assembled ready to connect to power.
• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Can be mounted in any orientation.
• Foam insulation to minimize backward heat transfer and reduce noise and vibration.
• Also known as; peltier liquid chiller, thermoelectric liquid chiller, solid state liquid chiller.
