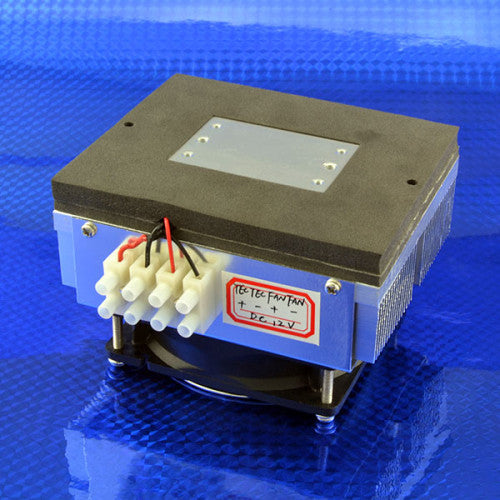

ATP-040-12 Air to Plate Cooling/Heating Unit 42 Watts

Air to Plate Cooling/Heating Unit

• Part Number: ATP-040-12
• 42 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 12 volt, 4.9 amp
• Cold plate dimensions: 60 x 40mm (2.362 x 1.575")
• High performance bonded fin aluminum heat sink
• Overall dimensions: 120 x 103 x 80mm (4.72 x 4.06 x 3.15")
• Weight: 763 grams (1.68 lbs)

Complete assembly Cold plate for cooling or heating of objects that can be directly mounted to the plate surface.

• Fully assembled ready to connect to power.
• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Can be mounted in any orientation.
• Foam insulation to minimize backward heat transfer and reduce noise and vibration.
• Also known as; peltier cold plate thermoelectric cold plate, solid state cold plate.
