ATP-080-24 Air to Plate Cooling/Heating Unit 75 Watts

Air to Plate Cooling/Heating Unit

• Part Number: ATP-080-24
• 75 Watts of cooling capacity at 0°C delta T.
• Power needed: DC 24 volt, 5.0 amp

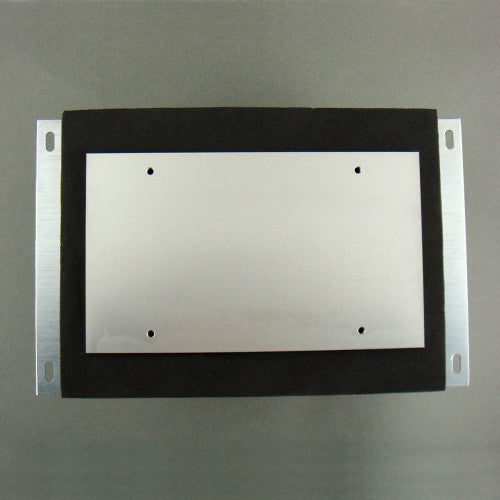

• Cold plate dimensions: 177 x 104mm (7.0 x 4.12")
• Cold plate mounting holes: Tapped M4 85 x 110mm (3.35 x 4.33")

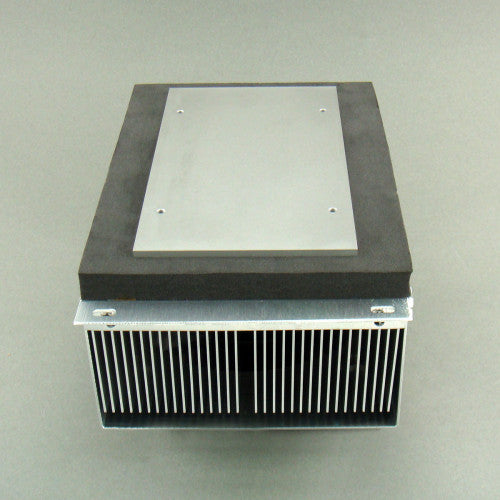

• High performance bonded fin aluminum heat sink
• Overall dimensions: 204 x 156 x 153mm (8.03 x 6.14 x 6.02")
• Weight: 3450 grams (7.6 lbs)

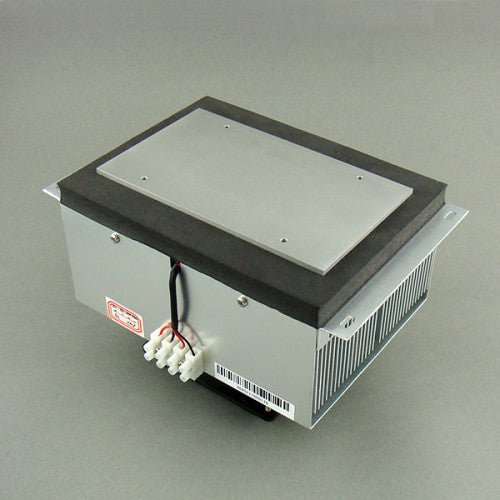

Complete assembly Cold plate for cooling or heating of objects that can be directly mounted to the plate surface.

• Fully assembled ready to connect to power.

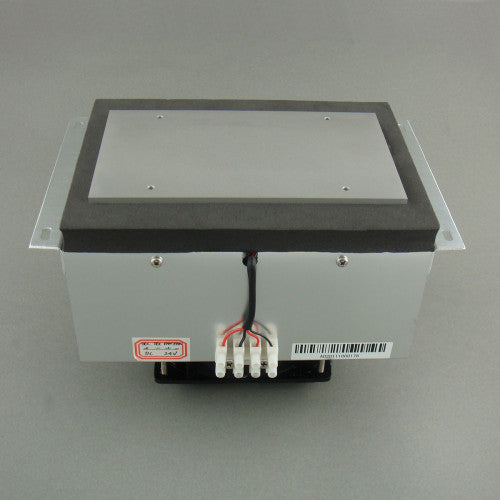

• Terminal block for quick and easy electrical connections.
• Fans and TEC power have separate terminals to allow independent control.
• Can be mounted in any orientation.
• Foam insulation to minimize backward heat transfer and reduce noise and vibration.
• Also known as; peltier cold plate thermoelectric cold plate, solid state cold plate.
