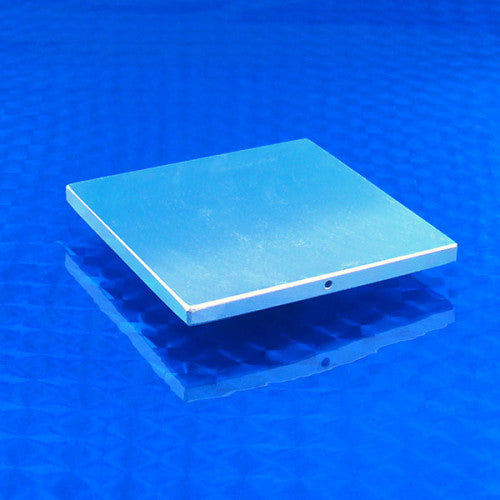

CP-1.63-1.63-AL-01 Cold Plate

Cold Plate

• Part Number: CP-1.63-1.63-AL-01
• Material: Aluminum alloy 6061
• Overall Dimensions: 1.625 x 1.625 x 0.12" (41.28 x 41.28 x 3.0mm)
• Weight: 14.0 grams (.031 lbs)


Cold plates are intended to be mounted on top of a Peltier TEC. Specimens and other articles are placed on the plate for cooling or heating. Accurate temperature sensing can be acquired by placing a thermistor or thermocouple in the provided hole.

• Ideal as a cold plate for 40 x 40mm standard TECs or our 38.1 x 38.1mm TiTan TECs.

• Aluminum alloy 6061.
• Temperature sensor hole included.
• Smooth surface of 32 micro inches or better.
• Ready to drill, tap, cut, or modify as needed for your application.
