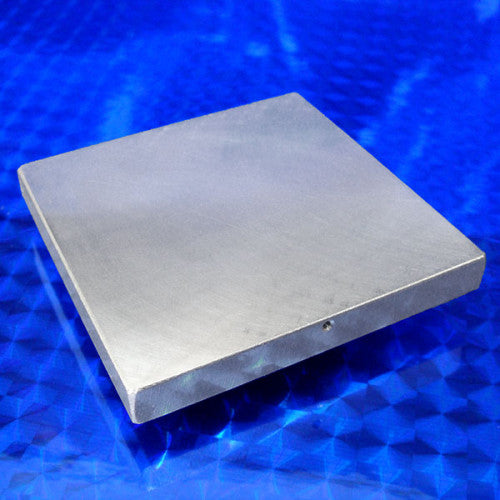

CP-2.0-2.0-AL-02 Cold Plate

Cold Plate

• Part Number: CP-2.0-2.0-AL-02
• Material: Aluminum alloy 6061
• Overall Dimensions: 2.0 x 2.0 x 0.25" (50.8 x 50.8 x 6.3mm)
• Weight: 43 grams (.095 lbs)


Cold plates are intended to be mounted on top of a Peltier TEC. Specimens and other articles are placed on the plate for cooling or heating. Accurate temperature sensing can be acquired by placing a thermistor or thermocouple in the provided hole.

• Ideal as a cold plate for a 50 x 50mm standard TEC or a 2.0 x 2.0 inch TiTan TEC.

• Aluminum alloy 6061.
• Temperature sensor hole included.
• Smooth surface of 32 micro inches or better.
• Ready to drill, tap, cut, or modify as needed for your application.
