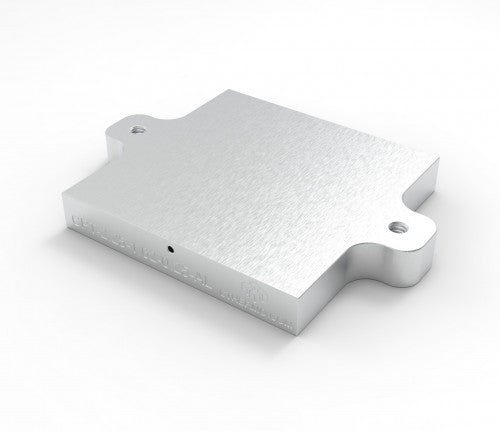

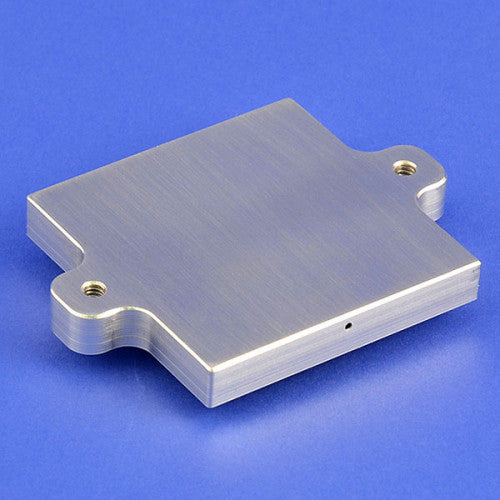

CPT-2.25-1.62-0.25-AL Cold Plate with Mounting Holes

Cold Plate with Mounting Holes

• Part Number: CPT-2.25-1.62-0.25-AL
• Material: Aluminum alloy 6061
• Overall Dimensions: 2.25 x 1.62 x 0.25" (57.15 x 41.15 x 6.3mm)
• Two holes are tapped for 4-40 machine screws.
• Weight: 31 grams (.07 lbs)

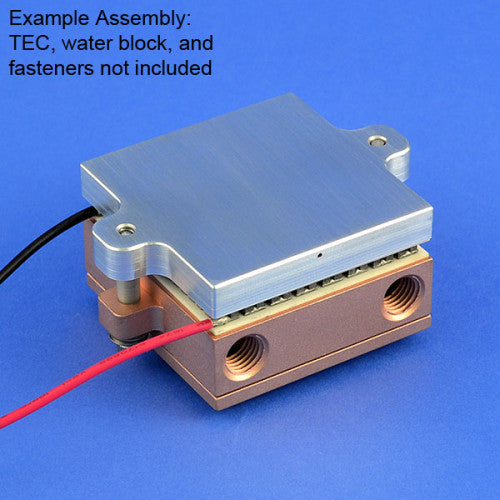

Cold plates with Mounting Holes are intended to be used with a specific water block. The cold plate is mounted with two machine screws to the water block and usually "sandwiches" a TEC or TEG in between. Specimens and other articles are placed on the top of the cold plate for cooling or heating. Accurate temperature sensing can be acquired by placing a thermistor or thermocouple in the provided hole.

• Ideal as a cold plate to be used with our WBA-1.62-0.55-CU-01 water block.
• Any 40x 40mm TEC may be used with this cold plate and the above mentioned water block.
• Aluminum alloy 6061.
• Temperature sensor hole included.
• Smooth surface of 32 micro inches or better.
• Ready to drill, tap, cut, or modify as needed for your application.
