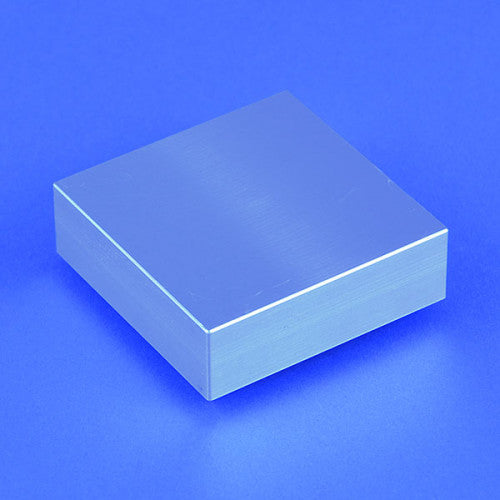

EB-1.62-1.62-0.50-AL Extender Block

Extender Block

• Part Number: EB-1.62-1.62-0.50-AL
• Material: Aluminum alloy 6061
• Overall Dimensions: 1.62 x 1.62 x 0.50" (41.15 x 41.15 x 12.7mm)
• Weight: 58.5 grams (.13 lbs)


Extender Blocks are used to increase the distance between the hot and cold sides. Always place the extender block on the cold side of the assembly.

• Ideal as an Extender Block for a 40 x 40mm standard TEC or TEG or a 1.5 x 1.5 inch TiTan TEC.

• Aluminum alloy 6061.
• Machined with a high quality smooth finish of 32 micro inches or better.
• Ready to drill, tap, cut, or modify as needed for your application.
