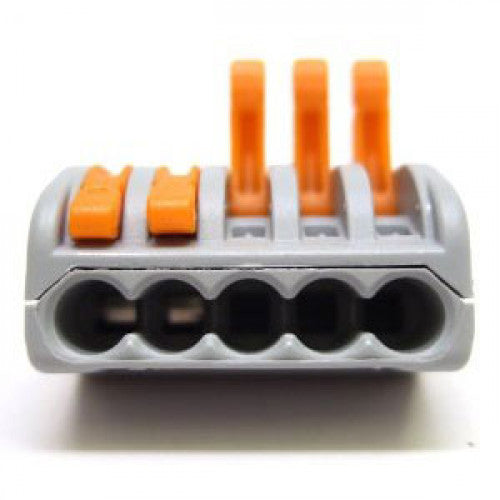

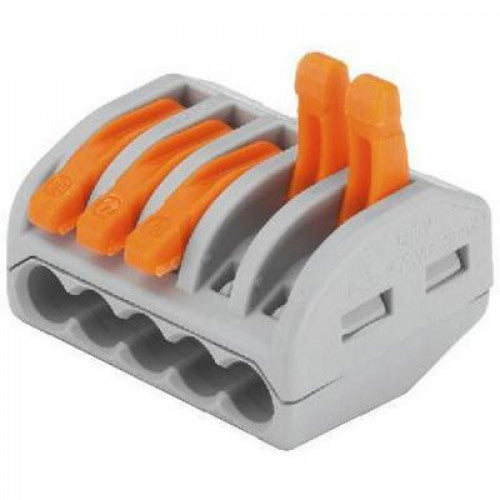

EC-222-415 Electrical Connector 5 wire

Wago Lever Nut Electrical Connector 5 wire

• Part Number: EC-222-415
• Connects 5 wires electrically
• Re-usable

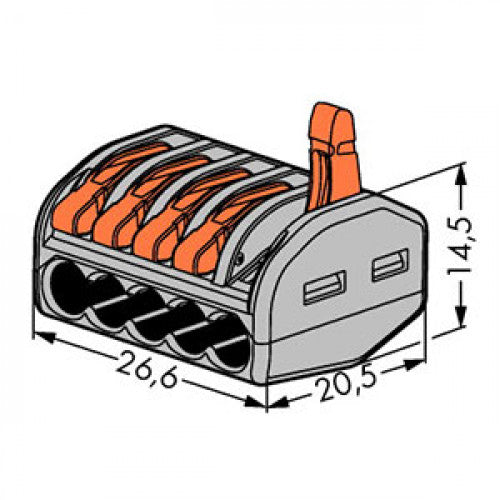

• Dimensions: 26.6 x 14.5 x 20.5mm (1.047 x .571 x .807 inches)
• Weight: 6.6 g (0.015 lbs)


You will wonder how you ever got by without these incredible wire nuts. Simply lift the orange lever, insert the stripped end of the wire until it stops, and then flip the lever down. Its that simple. Did we mention that they are re-usable? use them over and over and mix different wire guages and mix solid and stranded wires.

Connects up to 5 conductors (wires)

• Re-usable
• Works with both solid and stranded wires at the same time!
• Use different wire gages at the same time
• Handles 22 to 12 AWG, both stranded or solid.
• 600 volt, 20 amp max rated.
• 105°C max temp rated
• UL listed
• Wago part No. 222-415

Throw away those old style wire nuts. Once you try these you will never go back. They are so easy to use, compact for those tight spaces, and UL rated to 20 amps.
