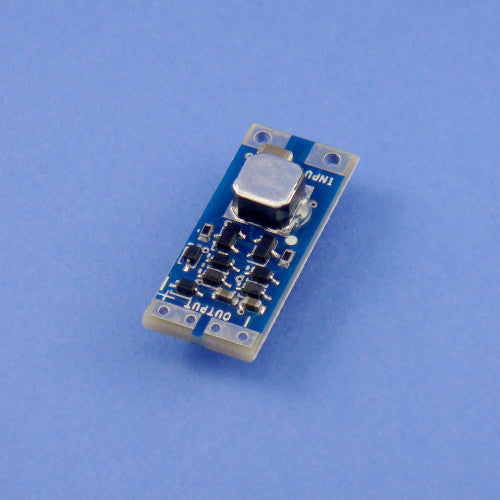

ELC-VB0815-1 Unipolar Voltage Booster 80mV

Unipolar Boost Converter

• Part Number: ELC-VB0815-1
• Dimensions: 26.8 x 11.5 x 7.8mm (1.06 x .45 x 0.31") (L x W x Th).
• Minimum input voltage: 80mV (0.080 volts)
• Maximum input voltage: 1.2 volts.
• Maximum output voltage: 10.0 volts.
• Weight:: 1.75 gram
• Color coded: SILVER
• Higher conversion efficiencies than the ELC-VB0410

This DC/DC Voltage Booster circuit takes very low input voltage and converts it up to a more usable voltage so you can light an LED or charge a battery.

• Unipolar input. [you must connect the input wires correctly or else it will not function].
• Starts boosting when the input voltage is 80mV (80 millivolts) or higher.
• Higher conversion efficiencies than the ELC-VB0410
• Output is 1 to 10 volts depending on input voltage and load.
• Built in Zener diode clamps maximum output to 10 volts.
• On-board jumper allows selection of 5 volt clamped output.
• Very small package size, about the size of a 16 pin DIP socket.
• High efficiency DC to DC conversion
• Ready for you to attach lead wires (not included) on both input and ouput.
• Developed in cooperation with TXL Group, a leading manufacturer of thermoelectric solutions for capturing waste heat energy.
