ELC-VBSTROBE VB Strobe Accessory Board

VB Strobe Accessory Board

• Part Number: ELC-VBSTROBE
• Dimensions: 25.5 x 12.9 x 14.5mm (1.004 x 0.508 x 0.571") (L x W x Th).
• Weight:: 3.8 grams

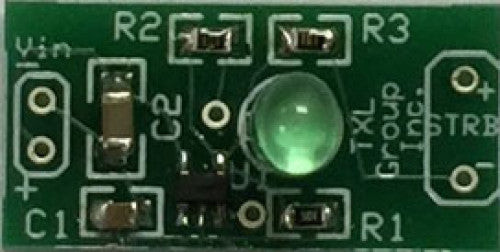

The VBStrobe charge storage board accumulates charge from an external source (such as a ELC-VB0410-1) and then releases the stored energy in bursts through a strobed high brightness LED.

• Green LED strobes (flashes) at a nominal 1 Hz frequency.
• Strobe frequency can be varied by changing on-board resistors and capacitors.
• Very small package size.
• Ready for you to attach lead wires (not included) to the input and even a 2nd LED on the ouput.
• Developed in cooperation with TXL Group, a leading manufacturer of thermoelectric solutions for capturing waste heat energy.
