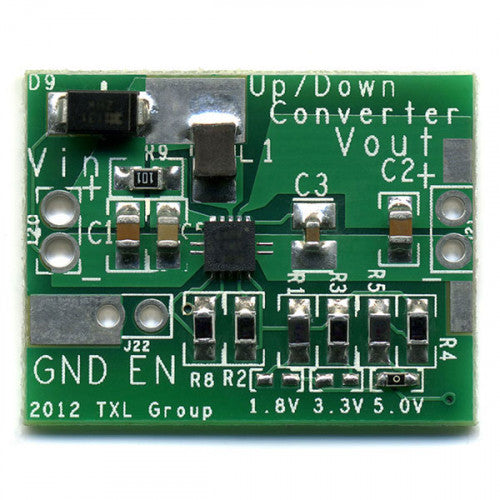

ELC-X0122 Step Up/Down DC-DC Converter

Step Up/Down DC-DC Converter

• Part Number: ELC-X0122
• Dimensions: 27.4 x 21.6 x 3.8mm (1.08 x .85 x 0.15") (L x W x Th).
• Minimum input voltage:0.5 volts
• Maximum input voltage: 5.0 volts.
• Output voltage: 1.8, 3.3, or 5.0 volts.
• Weight:: 2.3 gram

This DC/DC Voltage converter circuit will step up or step down (boost or buck) to maintain the selected output.

• DC-DC converter used to boost the low voltage outputs from many thermoelectric applications into higher, more usable voltages.
• Needs an input voltage of 0.5 to 5.0 volts
• Output is jumper selectable voltage of 1.8V, 3.3V, and 5.0 volts
• Default jumper set to 5.0 volts. Can easily be moved with small tip soldering iron.
• Very small package size.
• High efficiency DC to DC conversion
• Ready for you to attach lead wires (not included) on both input and ouput.
• Developed in cooperation with TXL Group, a leading manufacturer of thermoelectric solutions for capturing waste heat energy.
