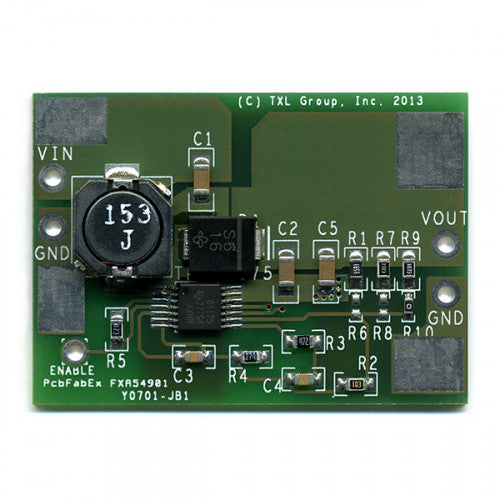

ELC-Y0701 Step Up DC-DC Converter

Step Up DC-DC Converter

• Part Number: ELC-Y0701
• Dimensions: 44.5 x 31.8 x 5.6mm (1.75 x 1.25 x 0.22") (L x W x Th).
• Minimum input voltage: 2.8 volts
• Maximum input voltage: 18 volts.
• Output voltage: 6 to 36 volts.
• Weight:: 7 grams

This DC/DC Voltage converter circuit will step up (boost) an input voltage to the selected output voltage.

• DC-DC converter used to boost the low voltage outputs from many thermoelectric applications into higher, more usable voltages.
• Converts up to 8 watts.
• Needs an input voltage of 2.8 to 18 volts
• Output is jumper selectable voltage of 6 to 36 volts
• Default jumper set to 24.0 volts. Can easily be moved with small tip soldering iron.
• Very small package size.
• High efficiency DC to DC conversion
• Ready for you to attach lead wires (not included) on both input and ouput.
• Developed in cooperation with TXL Group, a leading manufacturer of thermoelectric solutions for capturing waste heat energy.
