FST-SW-08-0.75 Shoulder Washer

Shoulder Washer

3D Models under the Drawings tab

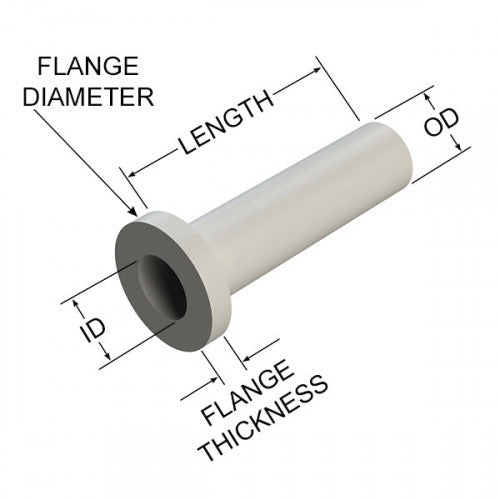

• Part Number: FST-SW-08-0.75
• Material: Nylon 6/6 Plastic
• For Screw Size No. 8.
• ID: 0.173
• OD: 0.205
• Length: 0.75
• Flange Diameter: 0.344
• Flange Thickness: 0.062
• Temperature Range: -40 to 82°C (-40 to 180°F)
• Thermal conductivity of Nylon 6/6: 0.25 W/m K
• Weight: xxx grams (xxx lbs)


Shoulder Washers are used to prevent heat flow through the screw to other parts of the thermal assembly. A shoulder washer thermally isolates a screw from making metal to metal contact.

• Made from strong Nylon 6/6 plastic.
• Very low Thermal Conductivity.
• Electrically non conductive.
• Can be cut to length with a razor blade if needed.
