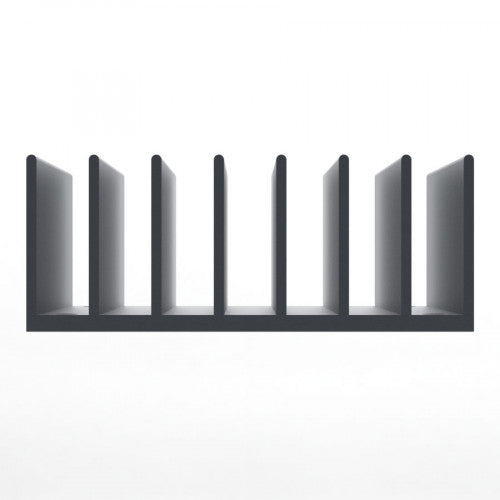

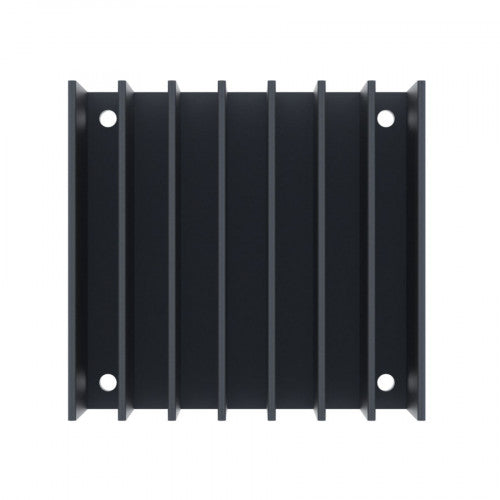

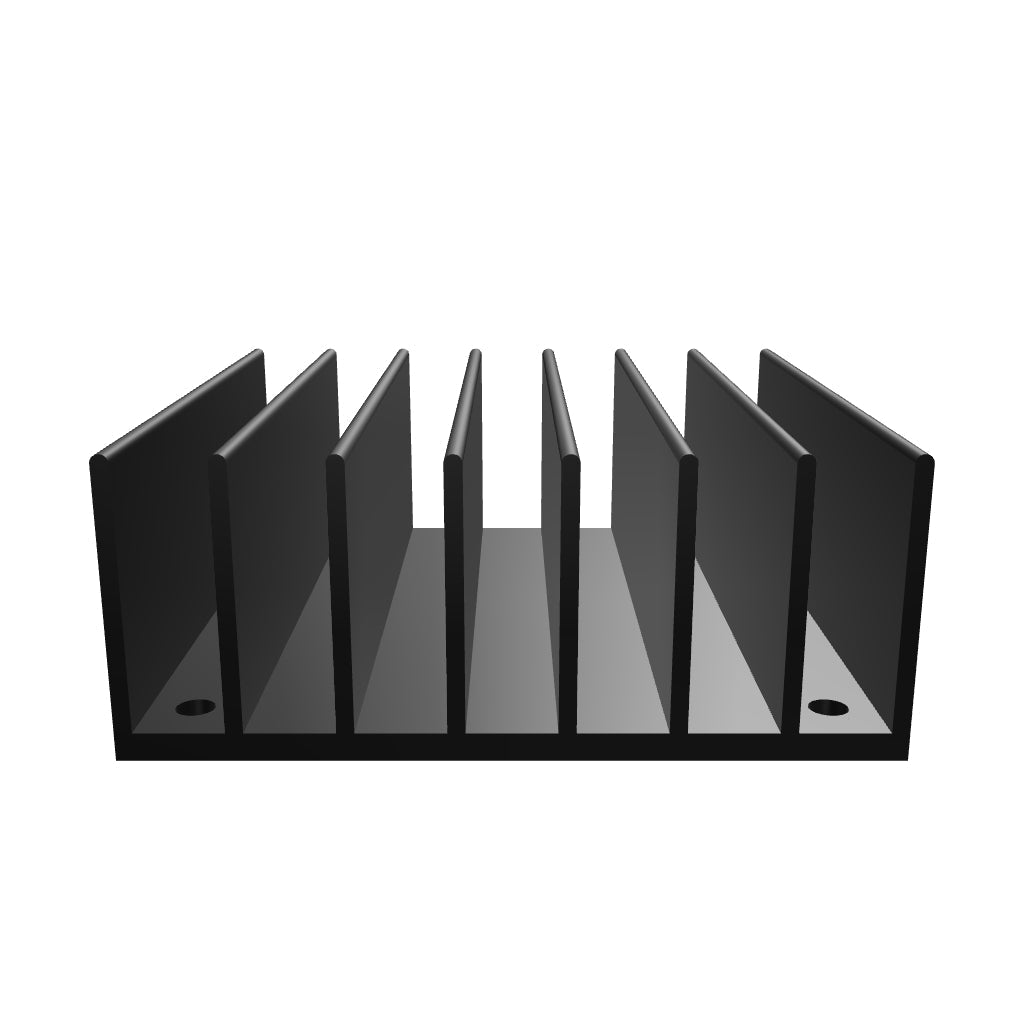

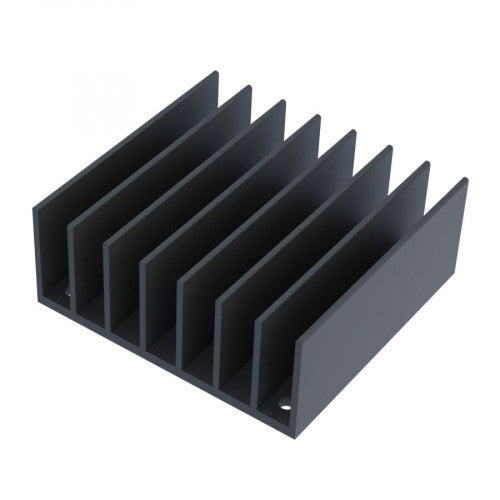

HS-2.28-2.40-0.95 Heat Sink

Heat Sink 2.28 x 2.40 x 0.95"

Extruded aluminum heat sink for cooling small TECs, TEGs, LEDs, or anything that needs to reject heat to the air.

• Part Number: HS-2.28-2.40-0.95
• Extruded aluminum heat sink.
• Overall Dimensions: 2.28 x 2.40 x 0.95" (57.91 x 60.96 x 24.13mm)
• Weight: 60.5 grams (0.133 lbs)
• Color: anodized Black

• Extruded aluminum alloy 6000 series
• For dissipating up to 11 watts with natural convection
• 8 fins
• 0.09 inch thick base
• 0.86" inch long fins
• Anodized black in color
• Ready to drill, tap, cut, or modify as needed for your application.
