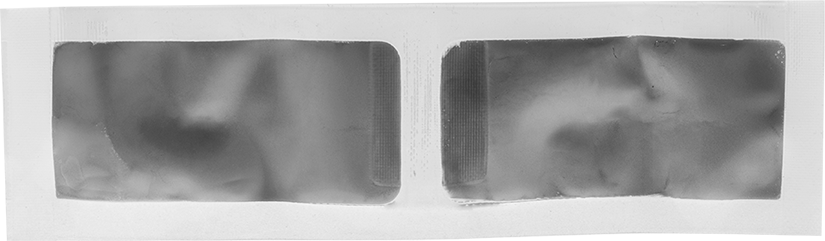

TE-920H-2.5G Thermal Adhesive

Flexible Silver Based Thermal Adhesive

• Part Number: TE-920H-2.5G
• Superior Quality Thermal Adhesive (epoxy).
• Temperature range: -59 to 110°C (-75 to 230°F)
• Thermal conductivity: 1.55 W/m K.
• 2 Part Epoxy based.
• Uses high thermally conductive silver particles.
• A dual pouch pack filled with 2 parts that are to be mixed together.

Flexible Silver Based Thermal Adhesive

TIGA 920H silver based thermally conductive epoxy is ideal for bonding different materials that need to maintain a flexible bond.

• Flexible
• Made with pure silver. Over 60% silver content by weight. Superior thermal performance.
• Temperature range: -59 to 110°C (-75 to 230°F)
• Electrically Conductive: The TIGA 920H is designed to be electrically conductive with a resistivity of 0.050 ohms-cm.
• Components: A "mix pack" consists of a dual pouch with each pouch containing 1 component of the epoxy.
• Use: Thoroughly mix the two component of the epoxy together and apply.
• Use on: Aluminum, brass, bronze, copper, steel, stainless steel, titanium, ceramic, and glass..
• Lead free and RoHS compliant.
