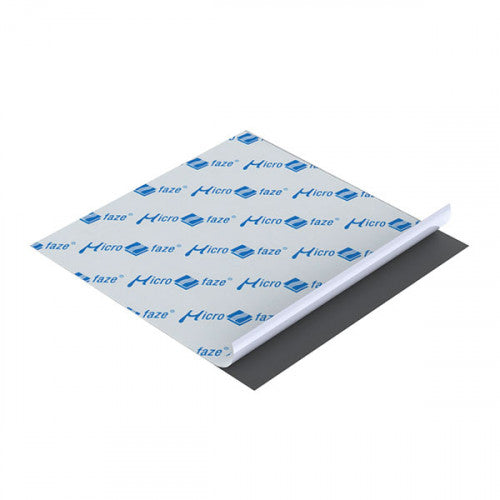

TS- MF3A6 Thermal Sheet 152 x 152mm

TS- MF3A6 Thermal Sheet

• Part Number: TS-MF3A6
• Micro-Faze 3 A-6 Thermal Interface Material (TIM).
• Temperature range: -45 to 200°C (-49 to 392°F)
• Non silicone based
• Thermal resistance 0.039 to 0.08 °C in²/W @70 psi.
• 6.0 x 6.0 inch sheet
• Just 0.006" (0.152mm) thick before compression.
• Just cut to size with scissors or an X-acto knife.

TS- MF3A6 Thermal Sheet

MICRO-FAZE® 3 A-6 is a revolutionary thermal interface pad formulated with non-silicone thermal grease. It was developed to offer the lowest thermal resistance in a thermal interface at this thickness without the mess of grease.

• Easy to use: Just cut to size with scissors or a knife.
• Consists of a 2 mil aluminum substrate coated on both sides with a specially formulated thermal compound (non-silicone, non-wax based) that is naturally tacky but dry to the touch.
• MICRO-FAZE 3 retains all the unique advantages of higher thermal performance silicone-based thermal greases but in the form of a thermal sheet.
• Unlike phase change materials, MICRO-FAZE 3 requires relatively low force to achieve total interface contact and heat transfer starts at ambient temperature.
• MICRO-FAZE 3 allows for total “wetting action” to fill all microscopic surface voids without changing phase.
• Offers maximum heat transfer capability.
• Excellent replacement for phase change materials and silicone pads.
• MICRO-FAZE 3 is a “drop-in-place” product for easy handling in a manufacturing environment.
• Thixotropic nature prevents run out.
