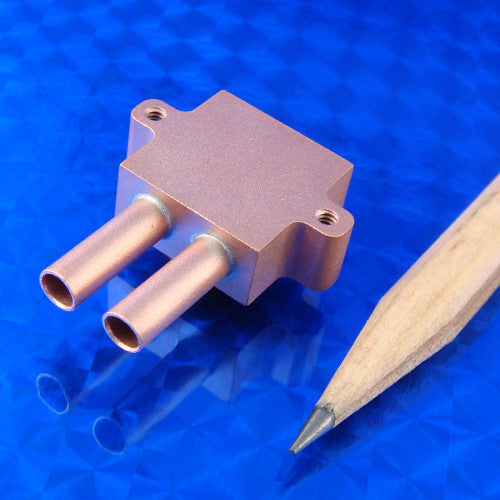

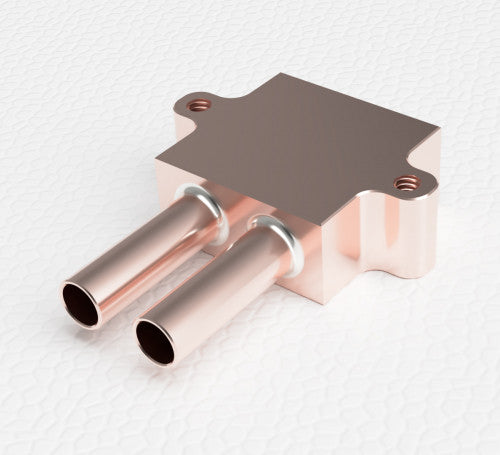

WBA-0.60-0.28-CU-01 Mini Water Block 0.6 x 0.6 x 0.28" Copper

Mini Micro Liquid Cold Plate Water Block Assembly

• Part Number: WBA-0.60-0.28-CU-01

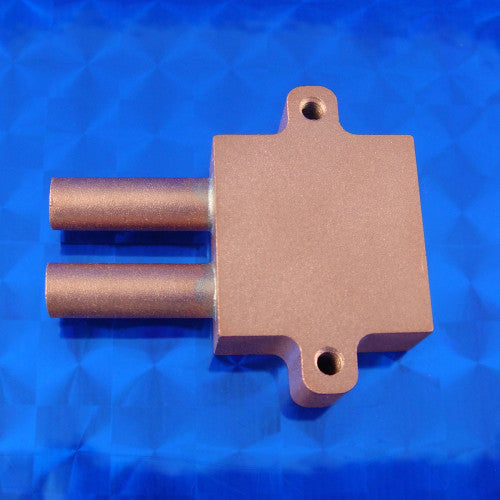

• Overall body dimensions: 0.59 x 0.59 x 0.28" (L x W x H).
• Usable area of 15 x 15mm (.59 x .59 inches).
• Weight: XXX (0.XX lb)
• Copper tube for inlet and outlet.
• CNC machined from solid copper [Alloy CU 110, 99.9% pure Copper] .
• Solder brazed construction.

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, lasers, power electronics, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

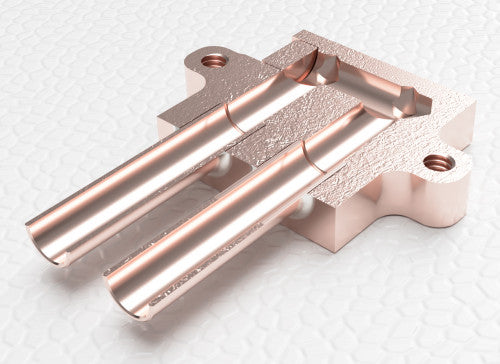

• Very high surface area internal flow path for maximum heat transfer.
• Measures: 0.59 x 0.59 x 0.28 inches.
• Usable flat area of 0.59 x 0.59 inches (15 x 15 mm).
• Liquid volume (internal) is 0.292 ml.
• 2 mounting holes tapped for 2-56 screws.
• Inlet and Outlet on the same side.
• 0.156" OD copper tubing for inlet and outlet.
• Use 0.125" ID flexible tubing to connect.
• Maximum service temperature is 150 C.
• Manufactured and assembled in Bishopville, MD U.S.A.

This copper liquid cold plate will accommodate per side;

• Any object to be cooled up to 15 x 15mm.
• Single TECs or TEGs up to 15 x 15mm.

CNC Machined from a solid billet of Copper 110 alloy.

This water block has been tested with a heat load of up to 120 watts. All indications showed that it could handle higher loads.

This liquid cold plate or water block is considered a mini or miniature liquid cooled cold plate. Custom versions can be made. Please contact us for a quote on your specific requirements.
