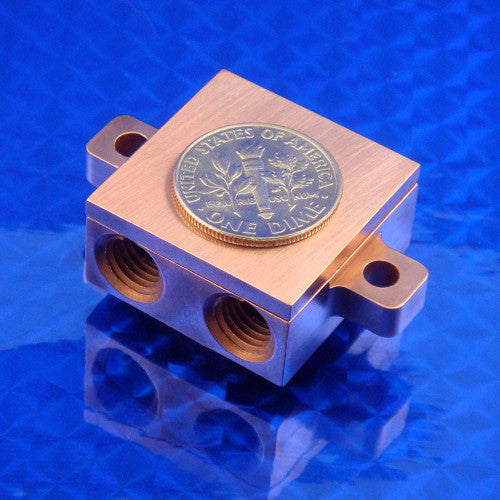

WBA-1.00-0.49-CU-01 Water Block 1.0 x 1.0 x 0.49" Copper

Mini Micro Liquid Cold Plate Water Block Assembly

• Part Number: WBA-1.00-0.49-CU-01
• Overall body dimensions: 1.0 x 1.0 x 0.49" (L x W x H).
• Usable area of 25.4 x 25.4mm (1.0 x 1.0 inches).
• Weight: XXX (0.XX lb)
• 1/16" NPT threaded inlet and outlet.
• Option to add 2 pieces of Nylon barbed fittings for 3/16" ID tubing.
• CNC machined from solid copper [Alloy CU 110, 99.9% pure Copper] .

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

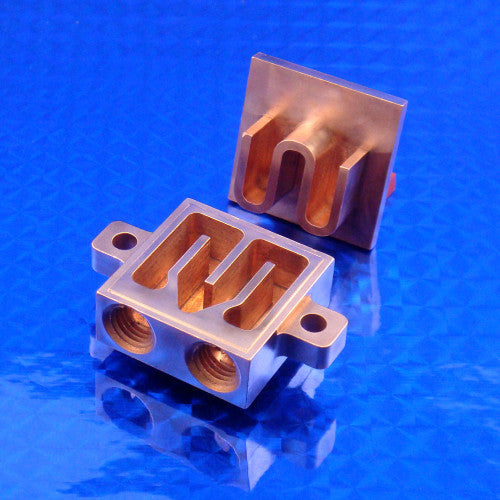

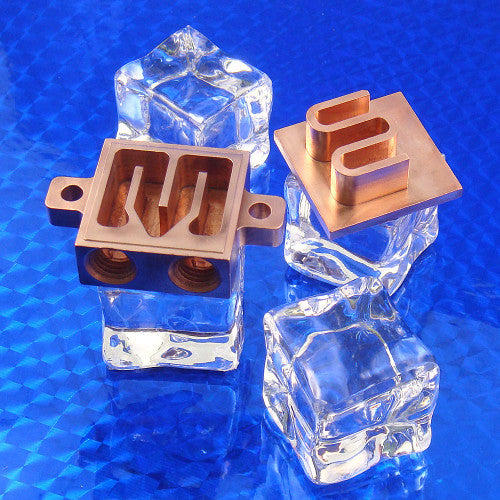

• Very high surface area internal flow path for maximum heat transfer.
• Measures: 1.0 x 1.0 x 0.49 inches.
• Usable flat area of 1.0 x 1.0 inches (25.4 x 25.4 mm).
• Liquid volume (internal) is 1.61 ml.
• 2 mounting lugs with holes.
• Inlet and Outlet on the same side.
• 1/16" NPT threaded inlet and outlet.
• Option to add 2 pieces of Nylon barbed fittings for 3/16" ID tubing.
• Maximum service temperature is 125 C.
• Manufactured and assembled in Bishopville, MD U.S.A.

This copper liquid cold plate will accommodate per side;

• Any object to be cooled up to 25 x 25mm.
• Single TECs or TEGs up to 25 x 55mm.

CNC machined from solid Copper.

This water block has been tested with a heat load of up to 200 watts. All indications showed that it could handle higher loads.
