WBA-1.25-0.50-CU-NP Water Block 1.25 x 1.25 x 0.50" Copper

Liquid Cold Plate Water Block Assembly

• Part Number: WBA-1.25-0.50-CU-NP
• Overall body dimensions: 1.25 x 1.25 x 0.50" (L x W x H).
• Usable area of 31.7 x 31.7mm (1.25 x 1.25 inches) on each side.
• Weight: XXX (0.XX lb)
• 1/8" NPT threaded inlet and outlet.

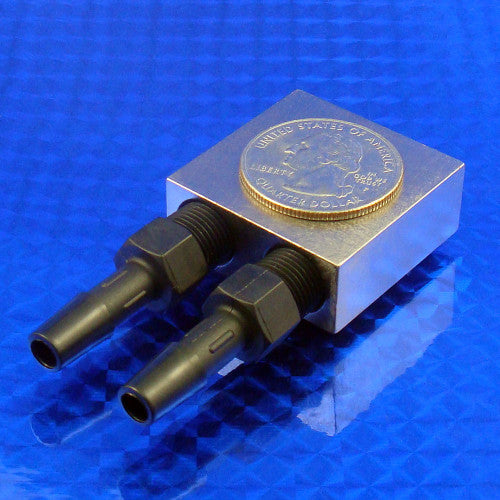

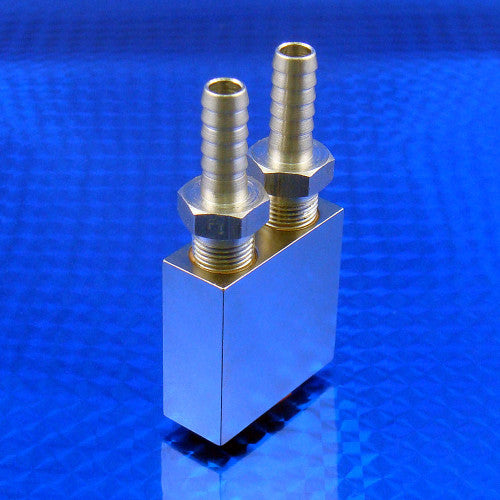

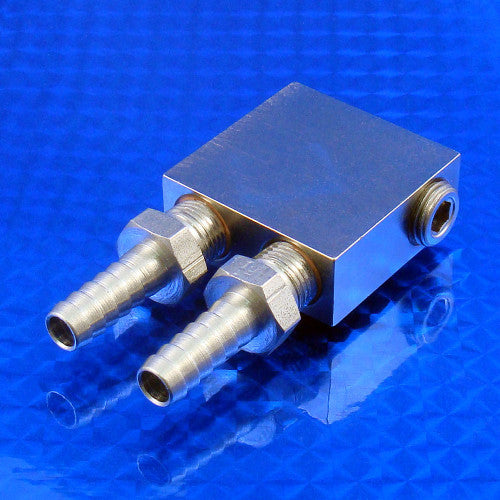

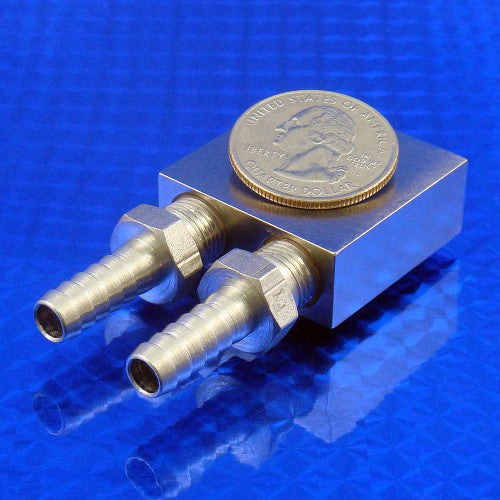

• Option to add 2 pieces of Nylon or Stainless Steel barbed fittings for 1/4" ID tubing.
• CNC machined from solid copper [Alloy CU 110, 99.9% pure Copper] and then Nickel plated.

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

Very high surface area internal flow path for maximum heat transfer.
Measures: 1.25 x 1.25 x 0.50 inches.
Usable flat area of 1.25 x 1.25 inches (31.7 x 31.7 mm) per side.
Inlet and Outlet on the same side.
1/8" NPT threaded inlet and outlet.

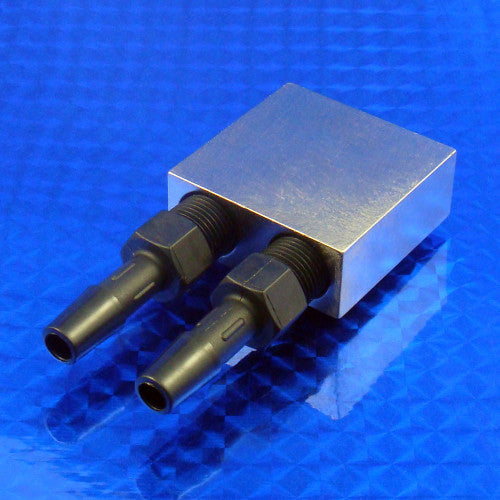

Option to add 2 pieces of Nylon barbed fittings for 1/4" ID tubing.
Maximum service temperature is 150 C.
Manufactured and assembled in Bishopville, MD U.S.A.

This copper liquid cold plate will accommodate per side;

Any object to be cooled up to 31.7 x 31.7mm.
Single TECs or TEGs up to 31.7 x 31.7mm.

CNC machined from solid Copper and then Nickel plated.

This water block has been tested with a heat load of up to 200 watts. All indications showed that it could handle higher loads.
