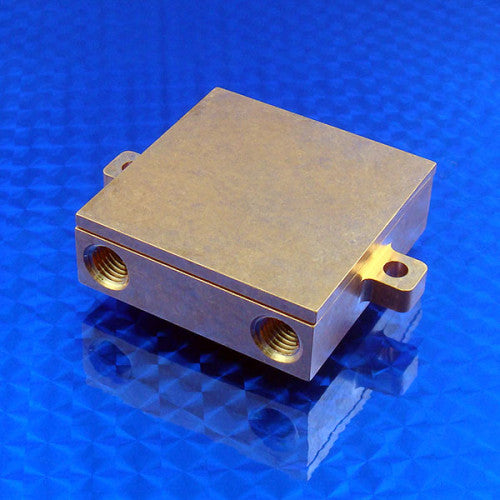

WBA-1.62-0.55-CU-01 Water Block 1.62 x 1.62 x 0.55" Copper

Liquid Cold Plate Water Block Assembly

• Part Number: WBA-1.62-0.55-CU-01
• Overall body dimensions: 1.62 x 1.62 x 0.55" (L x W x H).
• Each side has usable area of 41.0 x 41.0mm (1.62 x 1.62 inches).
• 1/16" NPT threaded inlet and outlet.
• Weight: 160g (0.353 lb)
• Total External surface Area: 9.285 in² (59.9 cm²)
• Option to add 2 pieces of Nylon barbed fittings for 3/16" ID tubing.
• CNC machined from solid copper, alloy 110, also known as ETP copper. [99.9% pure copper for maximum thermal conductivity].

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

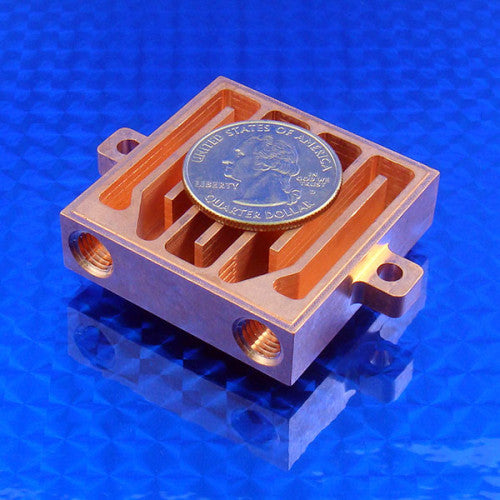

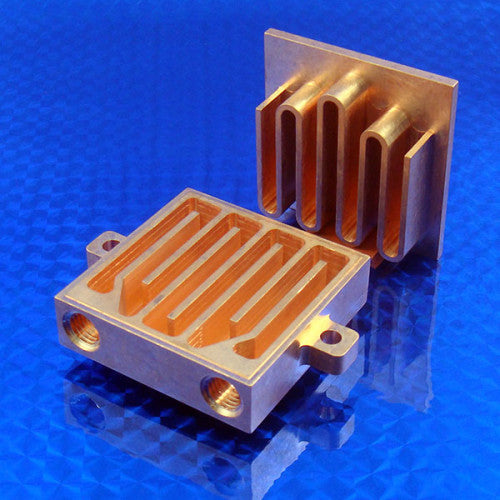

• Very high surface area internal flow path for maximum heat transfer.
• Measures: 1.62 x 1.62 x 0.55 inches.
• Each side usable flat area of 1.62 x 1.62 inches (41.0 x 41.0 mm).
• Both sides may be used at the same time.
• Liquid volume (internal) is 0.360 inches³ (5.90 cm³ or ml)
• 2 mounting lugs with holes.
• Solder brazed 100 psi watertight seal.
• Inlet and Outlet on the same side.
• 1/16" NPT threaded inlet and outlet.
• Option to add 2 pieces of Nylon barbed fittings for 3/16" ID tubing.
• Maximum service temperature is 150 C.
• Manufactured and assembled in Bishopville, MD U.S.A.

This aluminum liquid cold plate waterblock will accommodate;

• Any object to be cooled up to 41 x 41mm.

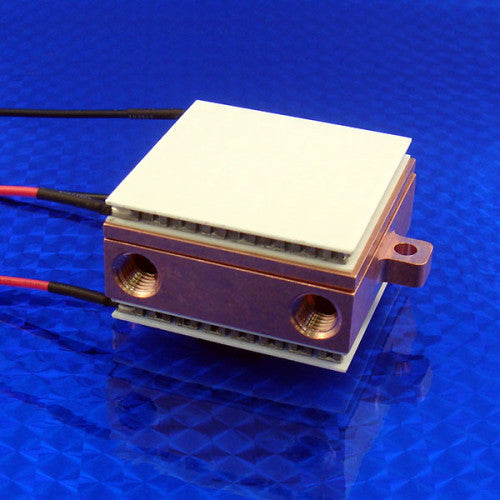

• 2, 3, or 4 TECs or TEGs up to 20 x 20mm.

CNC machined from solid copper, alloy 110, also known as ETP copper. [99.9% pure copper for maximum thermal conductivity].
