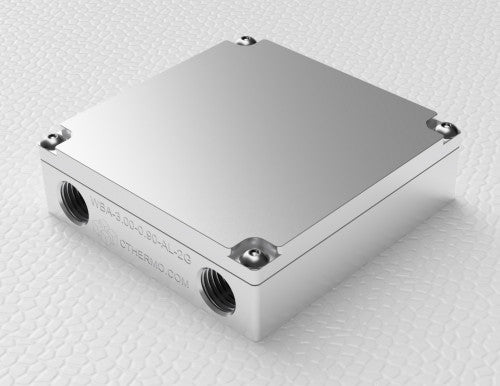

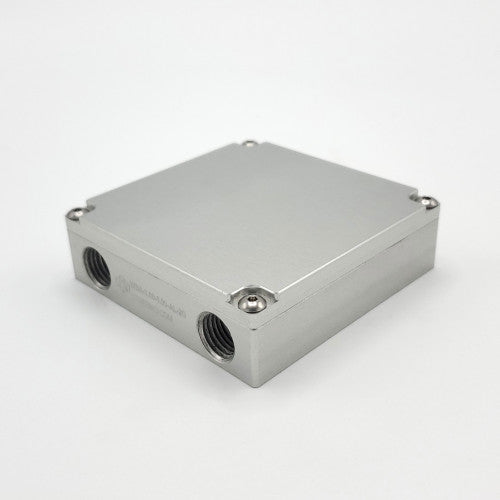

WBA-3.00-0.90-AL-2G 2nd generation Water Block 2G 3.0 x 3.0 x 0.90"

Liquid Cold Plate Water Block Assembly

• Part Number: WBA-3.0-0.90-AL-2G
• Overall body dimensions: 3.0 x 3.0 x 0.90" (L x W x H).
• Usable area of 65.0 x 65.0mm (2.56x 2.56 inches).
• Weight: 232 grams (0.51 lb)
• 1/4" NPT threaded inlet and outlet.
• Option to add 2 pieces of brass barbed fittings for 1/2" ID tubing.
• CNC machined from solid Alloy 6061 aluminum billet.

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

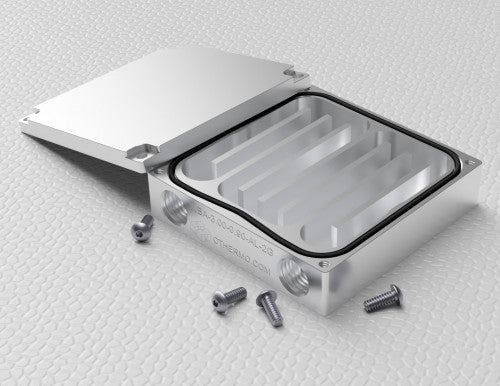

• 2nd Generation Design with improved fluid flow and recessed screw heads

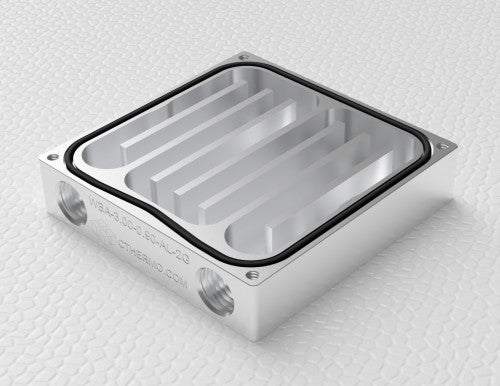

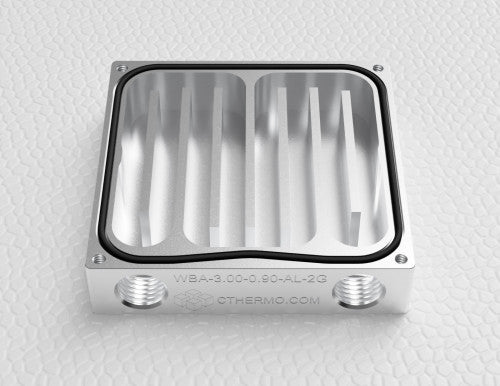

• Very high surface area internal flow path for maximum heat transfer.
• Measures: 3.0 x 3.0 x 0.90 inches.
• Usable flat area of 2.56 x 2.56 inches (65.0 x 65.0 mm).
• Liquid volume (internal) is XXX ml.

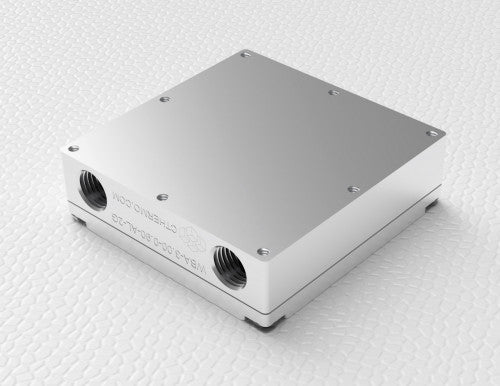

• 8 mounting holes tapped for 6-32 screws
• Inlet and Outlet on the same side.
• 1/4" NPT threaded inlet and outlet.
• Option to add 2 pieces of brass barbed fittings for 1/2" ID tubing.
• Maximum service temperature is 125 C.
• Manufactured and assembled in Bishopville, MD U.S.A.

This waterblock will accommodate;

• Any object to be cooled up to 65 x 65mm.

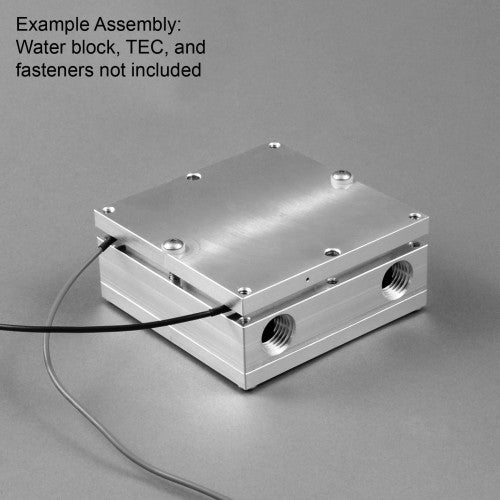

• 2, 3, or 4 TECs or TEGs up to 30 x 30mm.

CNC machined from solid Alloy 6061 aluminum billet.

This aluminum liquid cold plate water block has been tested with a heat load of up to 1200 watts. All indications showed that it could handle higher loads.

O-ring material is Buna-N which is capable of fluid temperatures from -29 to +120 C. Alternative O-ring materials are available as an option.  Please contact us.
