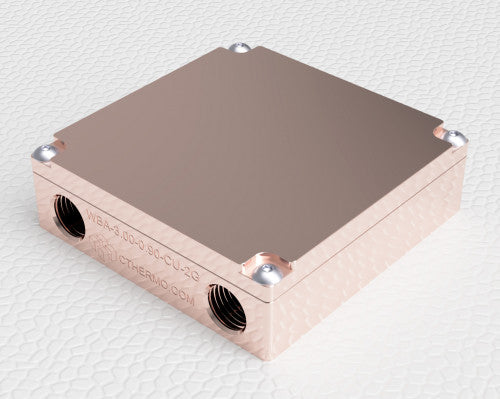

WBA-3.00-0.90-CU-2G 2nd generation Water Block 3.0 x 3.0 x 0.90" Copper

Liquid Cold Plate Water Block Assembly

• Part Number: WBA-3.0-0.90-CU-2G
• Overall body dimensions: 3.0 x 3.0 x 0.90" (L x W x H).
• Usable area of 65.0 x 65.0mm (2.56x 2.56 inches).
• Weight: 771gm (1.70 lb)
• 1/4" NPT threaded inlet and outlet.

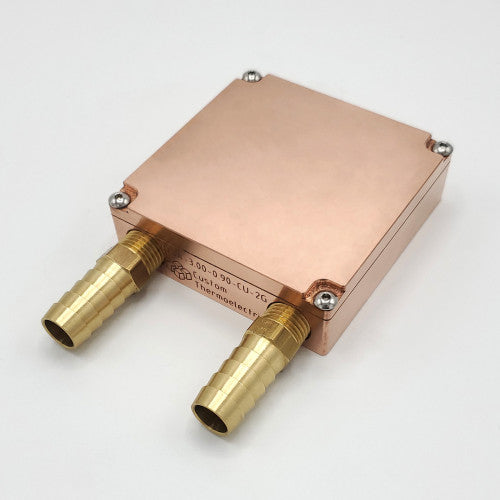

• Option to add 2 pieces of brass barbed fittings for 1/2" ID tubing.
• CNC machined from solid copper [Alloy CU 110, 99.9% pure Copper] .

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

• New 2nd Generation design with improved flow path, reduced pressure drop, and lighter in weight.

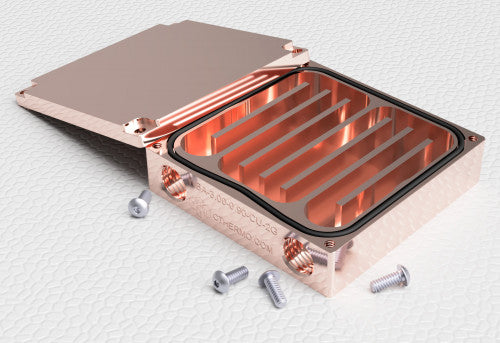

• Very high surface area internal flow path for maximum heat transfer.
• Measures: 3.0 x 3.0 x 0.90 inches.
• Usable flat area of 2.56 x 2.56 inches (65.0 x 65.0 mm).
• Liquid volume (internal) is 2.67 cubic inches, 43.77 ml.(cm3)

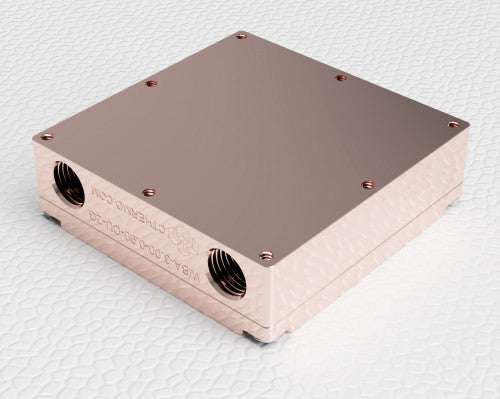

• 8 mounting holes tapped for 6-32 screws
• Inlet and Outlet on the same side.
• 1/4" NPT threaded inlet and outlet.
• Option to add 2 pieces of brass barbed fittings for 1/2" ID tubing.
• Maximum service temperature is 125 C.
• Manufactured and assembled in Bishopville, MD U.S.A.

This waterblock will accommodate;

• Any object to be cooled up to 65 x 65mm.

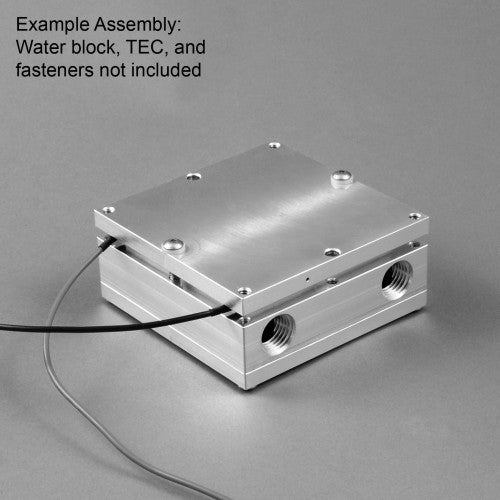

• 2, 3, or 4 TECs or TEGs up to 30 x 30mm.

CNC machined from solid 99.9% pure copper.

This copper liquid cold plate waterblock has been tested with a heat load of up to 1200 watts. All indications showed that it could handle higher loads.

Standard O-ring material is Buna-N which is capable of fluid temperatures from -29 to +120 C. Alternative o-ring materials are available as an option. Please contact us if you need other materials.

Click here to see 3.0 Inch O-rings

Call or Email us for custom options or to create custom Liquid Cold Plates for you.
