WBA-5.75-1.15-AL-01 Water Block 5.75 x 5.75 x 1.15"

Liquid Cold Plate Water Block Assembly

• Part Number: WBA-5.75-1.15-AL-01

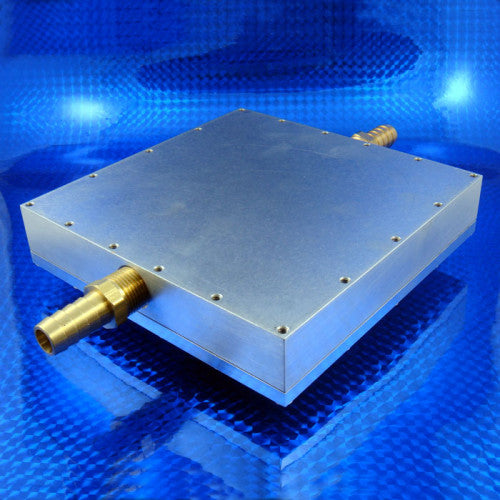

• Overall body dimensions: 5.75 x 5.75 x 1.15" (L x W x H).
• Usable area of 132 x 132mm (5.20 x 5.20 inches).
• Weight: XXX (0.XX lb)
• 3/8" NPT threaded inlet and outlet.
• Option to add 2 pieces of brass barbed fittings for 1/2" ID Tube.
• CNC machined from solid Alloy 6061 aluminum billet.
• O-ring watertight seal.

Liquid heat exchanger to rapidly remove heat from the hot side of TECs, TEGs, or just about any component. Most efficient method of removing heat from multiple TECs or TEGs.

• Very high surface area internal flow path for maximum heat transfer.
• Annodized clear for corrosion protection.
• Measures: 5.75 x 5.75 x 1.15 inches.
• Usable flat area of 5.20 x 5.20 inches (132 x132 mm).
• Liquid volume (internal) is 205 ml.
• 18 mounting holes tapped for 6-32 screws.
• Inlet and Outlet on opposite sides.
• 3/8" NPT threaded inlet and outlet.
• Option to add 2 pieces of brass barbed fittings for 1/2" ID Tube.
• Manufactured and assembled in Bishopville, MD U.S.A.

This aluminum liquid cold plate will accommodate;

• Any object to be cooled up to 132 x 132mm such as IGBTs, MOSFETS, sensors, circuit boards, etc.
• Single TECs or TEGs up to 132 x 132mm.
• 2 to 4 TECs or TEGs up to 62 x 62mm.
• 2 to 4 TECs or TEGs up to 50 x 50mm.

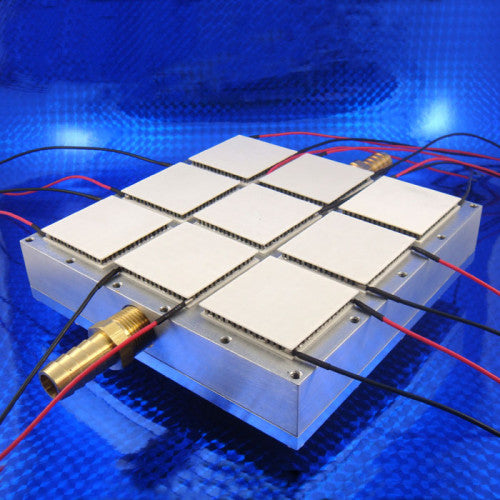

• 2 to 9 TECs or TEGs up to 40 x 40mm.
• 2 to 16 TECs or TEGs up to 30 x 30mm.

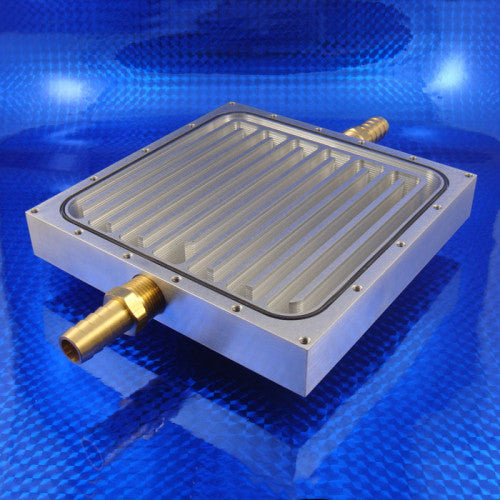

CNC Machined from a solid billet of aluminum with an O-ring seal. Internal flow path is easily serviceable by removing screws and cover.

This water block has been tested with a heat load of up to 1600 watts. All indications showed that it could handle higher loads.

O-ring material is Buna-N which is capable of fluid temperatures from -29 to +120 C. Alternative O-ring materials are available as an option. Please contact us.

Please call or email to discuss custom options or we can design and make customized Liquid Cold Plates for your application.
